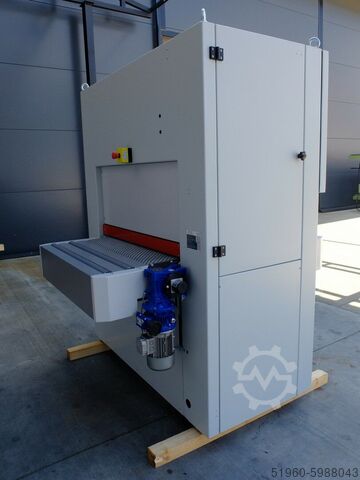

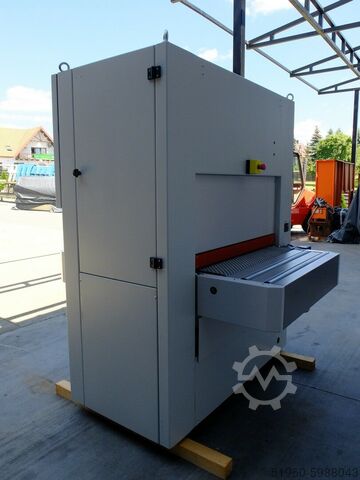

Wide belt sander

Unitek 970 pneumatic

Technical data:

Working width: 970 mm
Grinding width: 950 mm
Working height: 3 - 160 mm

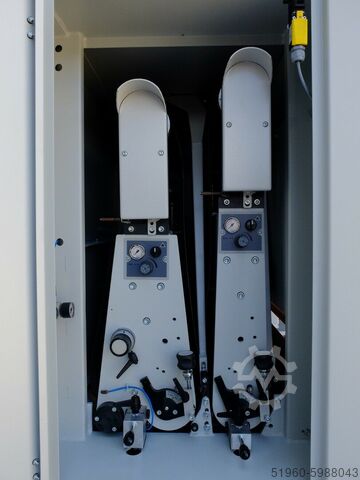

1 steel aggregate
2 combination unit with shoe
Bwodpfx Ahog A D Ane Ijn
The shoe is pneumatically pressed
Sanding belt dimensions: 970 x 2150 mm
Common motor power of 2 grinding aggregates: 11 kW
The speed of the feeding belt on the converter: 16-18 m / sec.

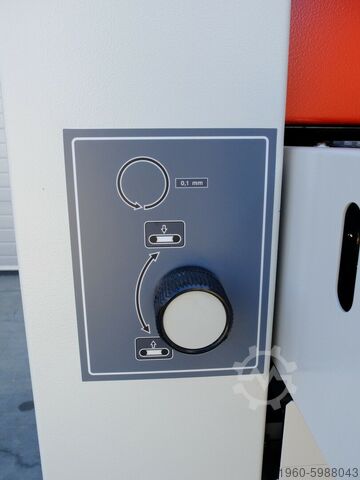

Table height adjustment motor power: 0.25 kW
Feed belt motor power: 0.55 kW
Sanding roll diameter: 150 mm
Sanding pad width: 50 mm
Sanding belt speed: 18 m / s 1 unit
Compressed air consumption: 20l / min

Standard equipment:

Mechanical oscillation of the sanding belt without the use of compressed air. ECO GEAR SYSTEM
Smooth regulation of the feeding belt on the converter 4-20m / min
Automatic star / delta start
Steel roller on the first aggregate, rubberized on KOMBI agragata

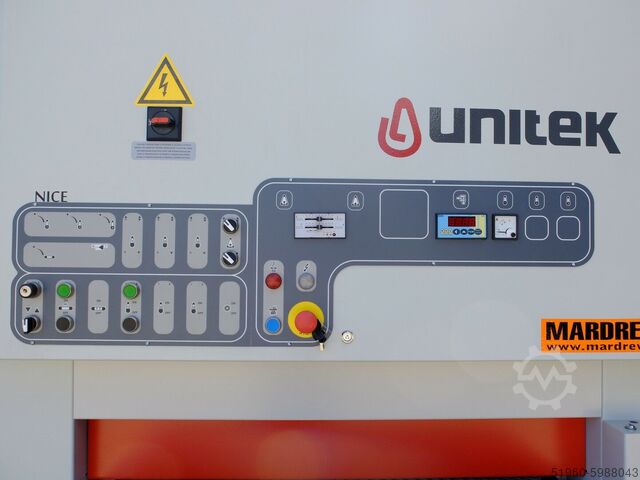

Electronic table height display
Automatic reading device for gr. material and table position setting
Safety switches
Automatic machine switches
Main engine brake
Rubber pressure rollers
2-roller table at the entrance and exit

In stock!

Machine dimensions:
Length: 1630 mm
Width: 1656 mm
Height: 2025 mm
