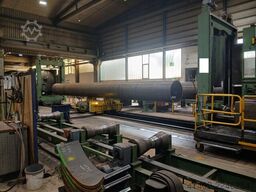

CNC tube processing machine

IRLE IRD 1600 CNC
End finishing machine
Manufacturer: IRLE, Type: IRD 1600 CNC
Year of manufacture: 2004, Control:
Ppodezqun Uepfx Apcsw

Max. workpiece diameter: 1,625 mm
Min. workpiece pipe diameter: 406 mm
Max. workpiece pipe length: 13,200 mm
Min. workpiece pipe length: 6,000 mm
Min. pipe wall thickness: 12 mm
Max. pipe wall thickness in copying mode: approx. 40 mm
Max. pipe wall thickness in CNC mode: 70 mm
Max. pipe weight: 250 kN
Height between the hall floor and the pipe inlet: 800 mm
Overall machine length: approx. 24,000 mm
Overall machine width: approx. 4,100 mm
Overall height from floor to top of clamping fixture: 5,000 mm
Machine weight: approx. 700 kN

01 - Intermediate carriage with travel drive
Carriage length: approx. 3,950 mm
Carriage width: approx. 1,800 mm
Carriage height incl. undercarriage: approx. 600 mm
Travel speed on the base rails: 500 - 5,000 mm/min

01 - Intermediate carriage with travel drive
Carriage length: approx. 3,950 mm
Carriage width: approx. 1,800 mm
Carriage height incl. undercarriage: approx. 600 mm
Travel speed on the base rails: 500 - 5,000 mm/min

02 - Headstock
Rotational speed range of the faceplate: 7 - 27 - 105 min"
Motor speeds: 300 - 1,150 - 4,500 min"
Motor power: 100 kW
Motor power in S1 operation: 14.3 - 129 - 105 kW
Max. torque of the faceplate in S1 operation: 33,000 Nm
Rated speed: 27 min"
Diameter of the main spindle in the front bearing: 300 mm

03 - Faceplate, X-axis
Faceplate diameter: approx. 1,950 mm
Travel distance of the NC tool holder: approx. 650 mm
Feed rate of the adjustable tool holder: 0.5 - 1,500 mm/min (infinitely adjustable)
Max. achievable feed force: 25 kN

04 - Feed drive; Z-axis
Feed travel of the headstock on the machine bed: 800 mm, infinitely variable
Three-phase controlled servomotor: 0.5 - 200 mm/min
Rapid traverse speed: 1,500 mm/min
Feed force: 30 kN
Torque of the feed motor Mt = 27 Nm

05 - Pipe clamping mandrels
Clamping range: 406 - 1,625 mm
Pipe weight per mandrel: 150 kN
Adjustable clamping force: 10 - 200 kN
Max. adjustment speed of the centrally adjustable clamping crossbars: 600 mm/min
