CNC routers

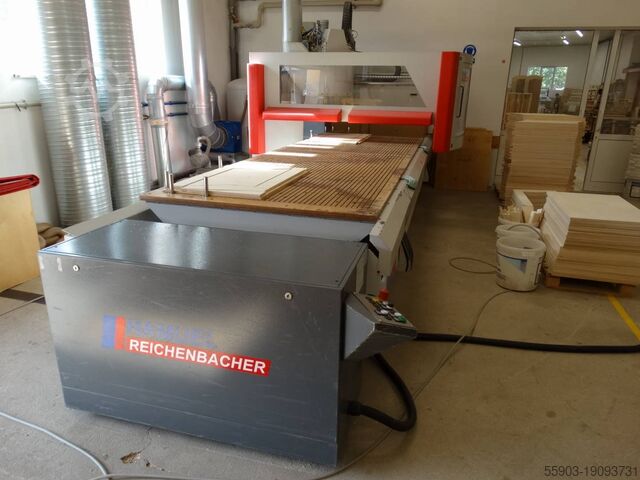

Reichenbacher GmbH ArtisX4 Sprint

ArtisX6 BRIEF DESCRIPTION.

1 10 kW working electrospindle; constant power in the range of 12,000 to. 24,000 1/min; working range: 1200–24,0001/min. Tool socket: HSK63F.
Axis working ranges: X = 4600 mm, Y = 1,550 mm, Z = 400 mm, B axis = 180°, C axis= 360°

Axis approach speeds: in the X/Y plane = 85 m/min; Z = 20 m/min

Gateway: 290 mm

1 automatic disc tool magazine, 15-position. Max. tool length: 240mm, max. tool weight: 6kg

L-shaped drilling unit, power 2.2 kW, spindle speed 4500 1/min, spacing 32 mm

Machine table: wooden (high-quality waterproof plywood). Dimensions: 4000 x 1300 mm 2 x 4 pneumatically extendable base pins (fi 25 mm, stroke 115 mm).

Tool set: yes (including some never used)

Table division into two stations for alternating work

1 vacuum pump with a capacity of 250 m3/h and a surge tank with a capacity of 500 l

Machine safety (EU standard): BUMPER bumper system (without the use of mats, photocells, etc.)

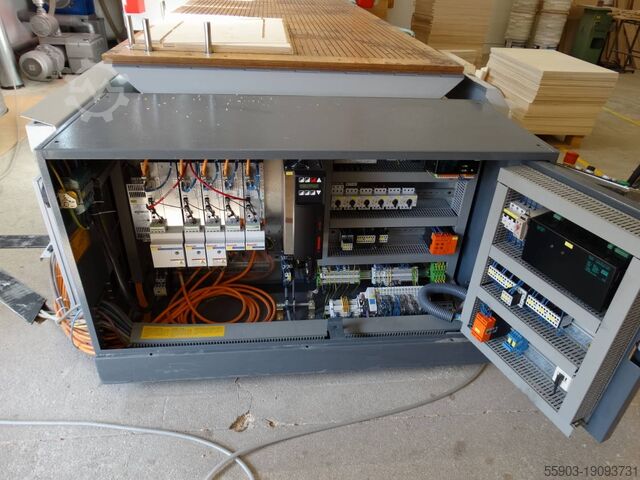

Bosch Rexroth PNC control, BTV 16 industrial PC computer, Pentium III processor, RAM 256 MB, HD 10 GB, network card

Profibus SERCOS drive control system

Data input: USB-Stick, local network

Operating system: Windows2000. ProEmbSys

Touch screen

CAD/CAM software: Alpha/CAM

Lhedpfxowh Aids Akrjf
Movable control panel with manual control panel

Remote diagnostics

Interpolation: 5 linear, 2 ½ D circular

Connected power: approx. 25 kVA

Central lubrication

Weight: 5.5 t

Machine in very good condition, 100% efficient.
Storage location: northern Poland
