Overhead Hanging goods conveyor system driven...

Schönenberger OMNIFLO Schönenberger Aluminium

OMNIFLO overhead Hanging goods conveyor system driven curve aluminum
RA2412
Manufacturer: Schöneberger
Technical data:
Inner radius: 800 mm
Outer radius of drive: 1000 mm = 800 mm + 200 mm order drive
Minimum length of leading straight section: 300 mm
Minimum length of trailing straight section for motor: 600 mm
Overall height: 110 mm profile height +
Direction of rotation: right, left curves optional
Drive type: chain with brushes
Prjdpfewpm Nwsx Abged
Conveyor speed: 0.16 m/s
Electrical data:
Voltage: 3x 380V high voltage
Ampere: 1.75 A
Power: 0.55 kW
Installation:

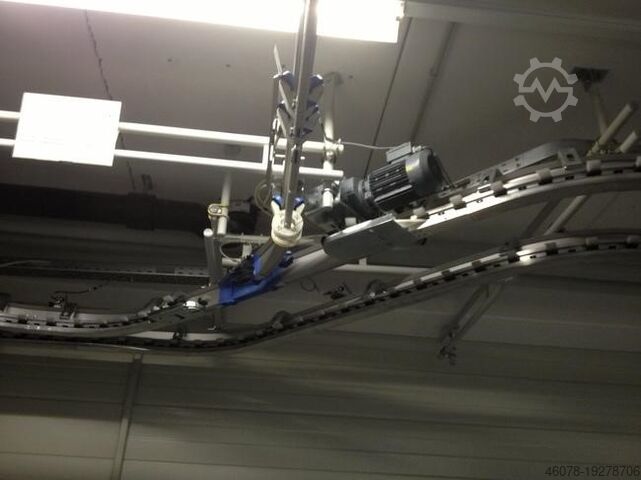

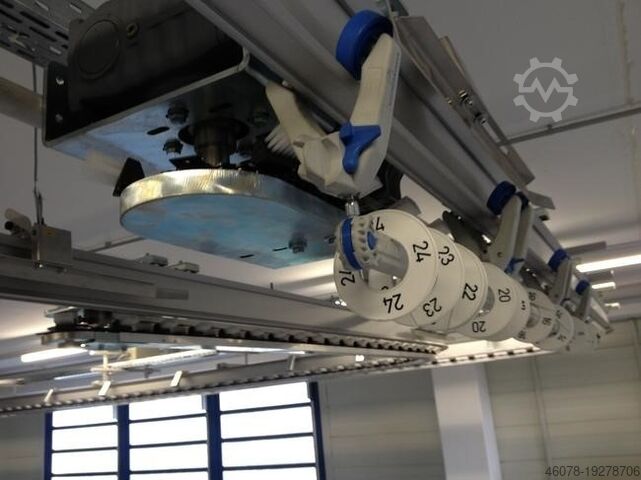

Ceiling suspension with motor support recommended, as shown in the photos
Primarily intended for flat transportation. Slight inclines may be possible depending on the length and weight of the trolley convoy
Optionally available:
Ceiling suspension
Angle adjustment
Change of direction of rotation (left-hand curve)
Extensions with straight sections/curves/switches see RA1994
