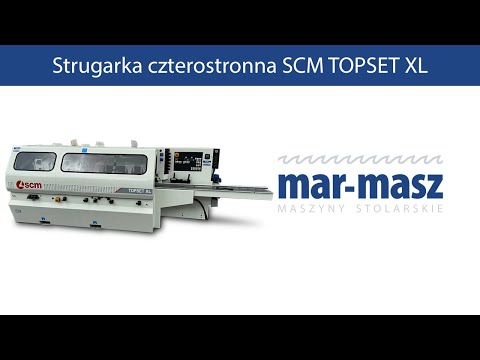

Four-sided wet planer

SCM TOPSET XL na 6 głowic

Stock number: 7713

TECHNICAL DATA
- Max. working width: 240 mm
- Max. working height: 130 mm
- 6 spindles:
1) Bottom horizontal 240 mm, 7.5 kW
2) Right vertical 130 mm, 5.5 kW
3) Left vertical 130 mm, 5.5 kW
4) Top horizontal 240 mm, 7.5 kW
5) Top horizontal 240 mm, 5.5 kW (spindles 4 and 5 are electrically adjustable up/down)
6) Bottom horizontal 240 mm, 5.5 kW
- All spindles adjustable vertically and horizontally
- Spindle diameter: 40 mm

Fsdow H Aqxjpfx Afzoft
Feed system:
• From above:
- 8 driven, geared steel feed rollers (including 3 double rollers)
- 4 driven, smooth rubber outfeed rollers (including 2 double rollers)
• From below:
- 3 smooth feed rollers
- 3 lateral pressure rollers
- Infinitely variable feed speed controlled by inverter
- Pneumatically pressed rollers
- Feed motor: 7.5 kW
- Feed via Cardan shaft rollers
- Electrically adjustable planing thickness
- Body lifting motor: 0.75 kW
- Infeed table length: 2,480 mm
- Pneumatic opening/closing of safety cabin
- Pneumatic blowing of table
- Central table lubrication
- Extraction connection diameters: 3 x 120 mm, 3 x 150 mm
- Dimensions (LxWxH): 5,300 x 1,700 x 1,800 mm
- Weight: 5,000 kg

ADVANTAGES
– Italian manufacturing
– 6-head configuration
– Suitable for wet and dry timber
– Pneumatic cabin opening
– Pneumatic table blowing
– Spindles 4 and 5 adjustable electrically
– Used planer, in very good condition

Net price: 136,900 PLN
Net price: 32,600 EUR (depending on exchange rate, 4.2 EUR)
(Prices may change with currency fluctuations)
