Beam Machining Center 1363

SERON BeamCenter

Technical Data:

Control System: Multi-axis real-time interpolator with active trajectory prediction, LAN communication, EtherCat, sampling time below 2ms, correction map, RTCP tool tip tracking, remote service access.

Working Area: 1300×6300 mm

Z-Axis Clearance: 300 mm

Drive System: Servo drives with EtherCat protocol, X and Y axes with helical, hardened and ground racks (accuracy class 6), Z axis with precision class 6 ball screw, planetary gearboxes with backlash less than 1’.

Linear Bearings: Linear guides with preloaded tension.

Traverse Speed: Up to 30 m/min

Software Resolution: Up to 0.0001 mm

Positioning Accuracy: 0.01 mm

Electrospindles: 15 kW inverter-driven, liquid-cooled.

Tool Taper: HSKF63

Maximum Electrospindle Speed: Up to 24,000 rpm

Construction: Welded steel, ribbed, stress-relieved, precision machined from a single setup.

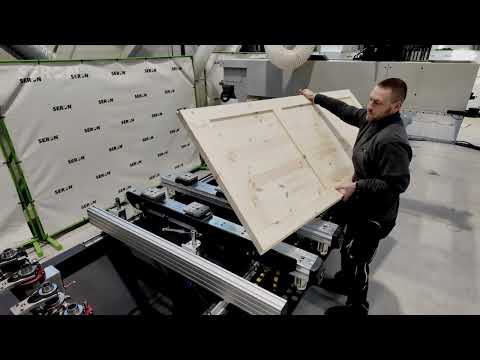

Table Type: Beam table

Equipment Options:

- Schmalz dual-circuit beam system
- Schmalz pneumatic and mechanical workpiece clamps
- Positioning stops
- Dual-zone operation capability
- Chip extraction readiness
- Chip conveyor
- Turret tool magazine and 2 linear magazines (26 tools)
- Drilling aggregate: 12 vertical tools, 4 horizontal tools, 2x saw blades
- Functions: correction map and intelligent energy recovery
- Advanced safety system
Bsdpfxen Nv Rco Al Redg
- Compatibility with CAD/CAM programming software (for furniture, fronts, stairs, windows, doors, and other components)
- Automatic central lubrication
- Control cabinet air conditioning
- Remote service access, remote diagnostics
- Tool diameter and length measuring probe with diameter compensation via control system
- Laser projection for workpiece positioning
- Machine designed in the Industry 4.0 concept
- Tool life option
