CNC milling plotter

Seron Nóż cnc, ploter bigująco-tnący

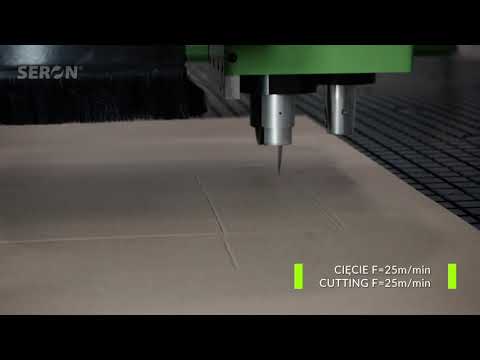

CNC knife, creasing and cutting plotter, cutting plotter, creasing plotter

Machine configuration:

Drives: Helical hardened ground X, Y
ball screw Z axis

Linear bearing: Trapezoidal rails

Travel speed: 80 m/min

Program resolution: 0.005 mm (0.0025 servo motors)

Positioning accuracy: 0.01 mm

Double-sided gate drive: yes

Electrospindle power: 7.5Kw S6

Maximum electrospindle speed: 24000 rpm

Electrospindle inverter: yes

Brushless electrospindle: yes

Cutter shank diameters: from 1 to 20 mm
Hfsdpfx Ajt N Stxsf Hjl

Construction: Steel welded

Power supply: 400 V

Possible additional options:

- tool cooling
- positioning bases with control
- central lubrication system
- Pneumatic extraction foot
- Manual manipulator
- 10-position linear magazine
- 1.50 mm pneumatic oscillating knife
- Creasing head
- Circular knife
- Material height sensor
- Tool length and diameter sensor
- 24-inch touchscreen monitor
- Remote service access
- 244 m3 vacuum pump with control system
- Gate angle auto-calibration
- Intelligent energy recovery
- Safety fence

Material fixing: Vacuum, pneumatically controlled sections with expansion valve
Control Real-time industrial control system

steel and soft metals: aluminum, brass, copper, bronze etc.
composites: dibond, alucobond, etc.
plastics: polycarbonate, PVC, plexiglass, teflon, polyamides, gambit, rubber, etc.
solid wood and wood-based panels: plywood, chipboards, MDF, OSB, etc.
paper, cardboard, foil, etc.
foams, extruded materials, etc.
leather, textiles etc.
