4 axis industrial robots, handling robots, Scara robots, handling robots, loading robots,

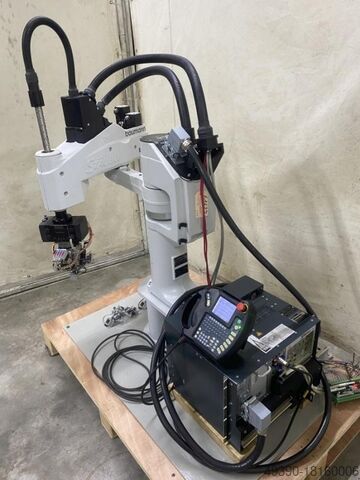

STÄUBLI TS80 + CS8C bmn

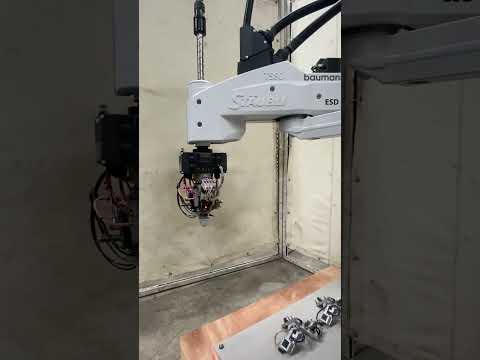

4-axis industrial robot, handling robot, SCARA robot, handling robot, loading robot, placer
STÄUBLI type TS80 + CS8C bmn
Year of manufacture 10/2011
Serial no. F11/5JN5A1/A Year 2011
Number of axes 4
Handling weight (rated load) 2 kg
Handling weight (maximum load) 8 kg
Arm reach 800 mm
Repeat accuracy (X+Y) 0.01 mm
Repeat accuracy (Z) 0.004 mm
Repeat accuracy (R) 0.002°
Working range axis 1 +-280°
Working range axis 2 +-310°
Stroke axis 3 (Z-axis) 200 mm
Rotation axis 4 (R-axis) +-500°
Nominal speed / maximum speed:
Axis 1 350 / 490 °/s
Axis 2 500 / 620 °/s
Axis 3 1600 / 2220 mm/s
Axis 4 1200 / 1929 °/s
Axes 1 + 2 8.11 / 10.84 m/s
Robot configuration floor mounting
Nodpfx Aevmhphshrowl
Controller STÄUBLI CS8C bmn
Serial no. F11/5JN5A1/C
Rated voltage 1 x 230 VAC
Rated frequency 50 - 60 Hz
Connected load 1700 VA
Dimensions of controller (W x H x D) 450 x 310 x 450 mm

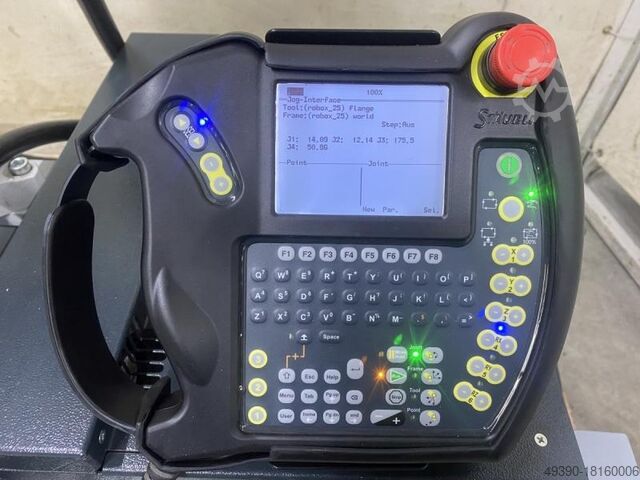

- Controller adjacent with removable "Teach in" operation
- Material gripper, workpiece gripper HELLA / MADER
Total weight 190 kg
Transport footprint L x W x H 900 x 700 x 1500 mm
Very good condition
