Cross rung milling cutter

STEGHERR KSF Mini

Number of milling spindles 2 St.
fence ja ja /nein
workpiece ja

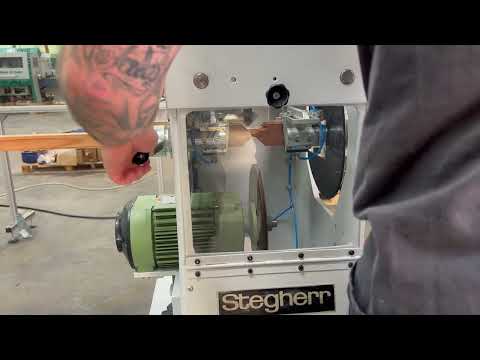

STEGHERR Cross-bar Milling Machine, Type KSF-mini
-----
Specialized milling machine for the efficient production of intersecting
muntin bar joints.

The KSF-mini muntin bar milling machine embodies STEGHERR's extensive experience
in manufacturing specialized milling equipment for intersecting muntin joints.

The KSF-mini enables the rapid and precise production of all
standard intersecting muntin joints encountered in practice.
Muntin bars that have already been profiled can also be processed on the KSF-mini.
Precise milling is achieved because the workpiece is machined on three sides
Dkjdpfx Aezip Nwogkeu
in a single clamping operation.

The tools are driven by two three-phase motors; workpiece
clamping is pneumatic.

The profile cutter is designed to match the web width. The saw blades
that perform the lap-joint cut can be adjusted to the profile cutter's
dimensions using spacer rings.

The machine is designed for a maximum workpiece cross-section of 56 x
46 mm.

- Motor: 2.2 kW, 380 V, 50 Hz
- Pneumatic pressure: 6 bar

Includes:
-----
- Machine stand
- Foot pedal control
- NEW ORIGINAL stop rail with scale and sliding stop
featuring an optical setting aid, as shown in the photos.

Tools as shown in the photos:
1 Profile cutter
3 Saw blades (corresponding to a web width of 10 mm)

Footprint approx. L x W x H: 1,330 x 570 x 1,430 mm
Weight: approx. 150 kg
-----
(All technical specifications provided by the manufacturer; no liability assumed!)
