Mobile fiber laser LAS 23 30 Watt

Systemtechnik Hölzer GmbH Mobiler Faserlaser mit 30Watt - LAS23

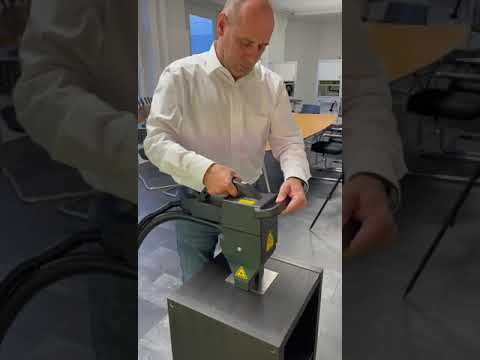

The mobile laser LAS 23 portable is characterized by its compact design. Small, handy and with custom-made attachments that can be individually exchanged in the quick-change system. With its mobile base, it can be moved to the workpieces to be marked. This makes it suitable for small, large and heavy workpieces.

With the powerful laser software, texts, numbers, 2D codes, QR codes and logos can be realized with just a few clicks without extensive programming knowledge. Serial and item numbers are automatically counted up by the software after prior setting. In addition, the software can read data (variable information such as drawing numbers, project designations, etc.) from existing tables and automatically transfer them to predefined areas. The use of a hand scanner is also possible.

Made in Germany

- Fiber laser 30W (optional: 20W, 50W)
- Laser class 1
- Wavelength 1064nm
- Marking field size 70x70mm (optional larger)
- marking software EZCAD in German / English
- Pilot laser (simple preview, clear text preview)
- Laptop incl. holder with Windows operating system
Kedpfxju Smd So Aftjdw
- Structure made of aluminum profile
- Connection 230V including cable reel
- air cooled
- Dimensions: approx. 350 x 605 x 1080mm (LxWxH)
- Weight: approx. 40 Kg
- weight of portable laser unit 2,8 Kg
- Extraction integrated
