Belt conveyor

Transnorm GF 22980-700-600

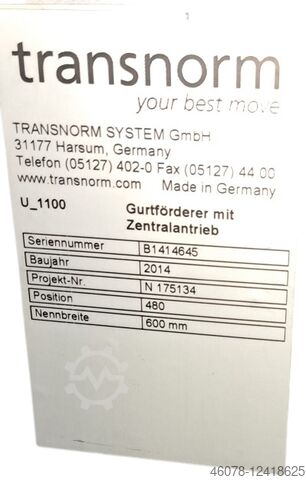

Transnorm conveyor belt GF 22980-700-600

RA2064

Technical data:

Conveyor length (NL): 22980 mm
frame width (NB): 700 mm, 800 mm with motor
belt width (GuB): 600 mm
Overall height (BH): 80 mm, 430 mm with motor
Supporting feet: optionally available
Conveying speed (v m/s): 0,42

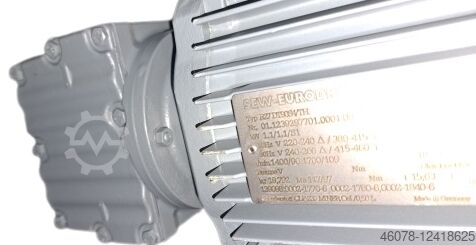

Drive: SEW gear motor R27 DT90S4/TH
Electrical data: 50Hz V380-500, kW 1,1 S1
Drive drum: Ø = 81 mm
Belt return roller: Ø = 81 mm

Optionally available:
Supports
Side guide on one side and on both sides
Frequency converter for stepless speed change
Adjust length (longer/shorter)

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany
