Planer and moulder

Weinig Unimat 23 EL, Uniplan 23

Weinig Unimat 23 EL
Year of manufacture: 2004
Working width: 230 mm, Working height: 120 mm
1. Bottom spindle with 7.5 kW motor and spindle brake
2. Right spindle with separate motor, 7.5 kW and spindle brake
Speed: 8,000 rpm with high-performance ball bearings, NC-axis with frequency inverter, axial stops milled to 35 mm height
3. Left spindle with separate motor, 7.5 kW, speed 8,000 rpm with high-performance ball bearings, NC-axis with frequency inverter, radial pneumatic pressure guide left for varying workpiece widths up to 200 mm
4. Top spindle with 7.5 kW motor and spindle brake, speed 8,000 rpm with high-performance ball bearings, NC-axis radial
Pneumatic axial control, adjustment range 40 mm, glazing bead ejection, pneumatically cycled.

- Infeed system with 4 kW motor and infeed brake
- Short piece package
- UC-Matic package consisting of:
PLC control, central motor start, parts monitoring, operator terminal, free-standing control cabinet, free-standing operating panel, magnetic interlock for safety cover
- Enhanced sound insulation
- Automatic planing and feeding system for different workpiece lengths and widths
Workpiece dimensions Length: 400 – 3,500 mm (4,000 mm)
Width: 40 – 200 mm
Thickness: 20 – 100 mm

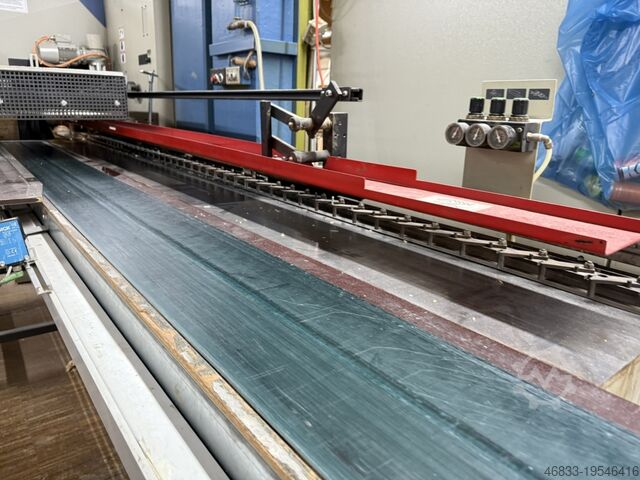

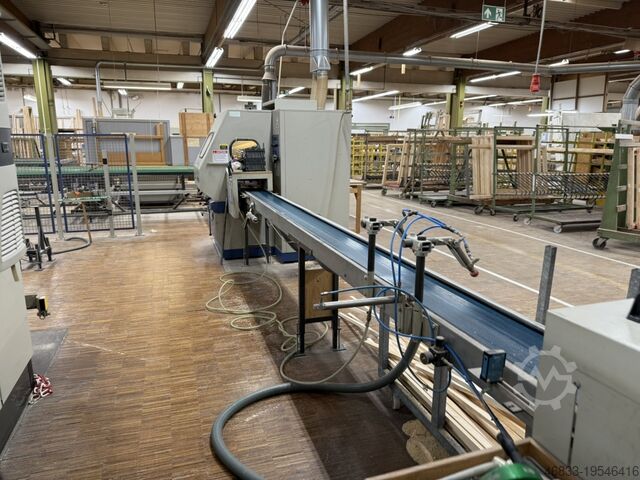

Powered conveyor belt
Belt width 250 mm, conveying length 4,500 mm, additional photoelectric sensor for signal transmitter

Kdodjwyuluepfx Aftow
Weinig Hydro Finish Planing Machine Uniplan 23
Year of manufacture: 2004
Working width: 230 mm, Working height: 120 mm
1. Bottom spindle with 7.5 kW motor and spindle brake, speed 7,200 rpm
2. Top spindle with 7.5 kW motor and spindle brake, speed 7,200 rpm, NC-axis radial

- First feed roller cycled with photocells
- NC-axis for separate feed height adjustment
- Improved sound insulation
- UC-Matic package
- 2 hydro straight cutter blocks 501 with HSS strip planer knives 30 mm x 3 mm, max. 9,000 rpm, dimensions 163 mm x 230 mm x 50 mm, Z=4
