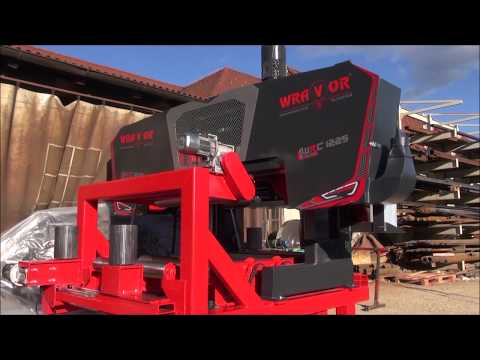

Complete sawmill (stationary)

WRAVOR WRC 1225 LAMELLE COLLE GLUELAM

STATIONARY SAW WITH CABIN (closed optional)
Technical characteristics:

- Main motor 55 kW with frequency converter
- max. cutting width: max 600 mm
- max. Workpiece height: 1000 mm
- 1200 mm diameter of the main wheels: model WRAVOR WRC 1225 AC
- Main wheels - cast, width 125 mm
- 11 kW electric motor for the up/down movement of the saw blade
- Main columns on the ground - structure on which the saw head moves up and down using a special sliding plastic
- 1 x 16 liter hydraulic power unit with 4 kW pump
- Automatic hydraulic blade tension
- Hiwin linear blade guide movable on the right and fixed blade guide on the left
Kjdpfxevr Tdhe Aftedw
- Additional valve for the roller
- Blade guide pressure
- 2 magnetic sensors for warning in case of blade deviation
- 1 piece of PV 40 blade - length 8685 mm x 1.2 mm x 150 mm
- Sawdust opening diameter - outlet mouth diam / 200 mm
- Electrical cabinet on the machine to connect all electrical cables to the saw
- Mini control panel for basic functions of the saw
- Central electrical lubrication of the spindle/worm
- Central oil lubrication system
- x Cameras
- SCHNEIDER control system and WRAVOR program: PLC with 1 joystick
