Zig Zag Separator

Zlomiarze Recycling Technology

ZIGZAG air separators
Application description:
ZIGZAG type air separator is a device designed to purify materials in the waste recycling process. The separator separates light fractions from heavy fractions by pneumatic method. It works well with a wide range of waste materials of 0-150mm size. Air separators of this type are used for pre-ground, jagged or very fine materials. Thanks to our unique design, the separator has the ability to adjust at many points that are important for the purity of the received fractions.

ZIGZAG type separators are used in many areas:
weight classification of metal granules
purification of shredded scrap from the light fraction (films, plastics, paper)
removal of volatile fraction during recycling of WEEE
purification of plastics, rubber
purification of municipal waste, glass
removal of dust
Construction description:
Cjdsua D Alspfx Al Nsrh

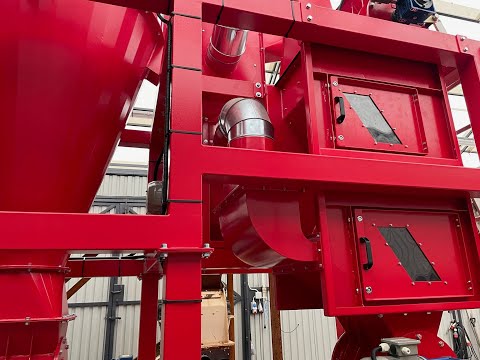

The ZIGZAG separator consists of individual components mounted on a common support structure. In the first part, the ZIGZAG module is installed. The module has an inspection hole and regulation of the material stream passage gap. In the second part there is a cyclone discharging the light fraction. Underneath the cyclone there is a variable speed sluice for ejection of separated materials. A fan with electronic speed control is located on top of the structure. The structure is designed in part for loading and unloading by conveyor belts. The separator has a control cabinet equipped with a safety system.
