Mobile pallet wrapper

ATLANTA NEOS

Mobile stretch winder NEOS

TECHNICAL DETAILS:
HMI touch panel 7"
two maintenance-free AGM batteries 12 V - 120 Ah connected in series
Standard charger: 230 V - 1L+N+PE - 50 HZ
Autonomy 200 - 300 pallets per load
High frequency battery charger with LED indicator
Winding height machine (pallet included) 2,150 mm
Height query via light button or by entering dimensions on the display
Protective bar for emergency stop of the travel drive
Emergency stop switch according to CE regulations
Acoustic warning signal and warning light when the machine starts
Fall protection for the film slide
Push button for start & stop function of the machine according to CE standards Ø 22 mm

ADJUSTABLE WRAPPING PROGRAMS ON THE CONTROL PANEL:
F01 - 01 - cross winding (up/down)
F01 - 02 - Single wrap (up only or down only)
F01 - 03 - Complete wrap cycle with foot wraps at the same starting height
F01 - 04 - Fast cycle (with limited or no foil overlap)
F01 - 05 - layer cycle
F01 - 06 - Economical winding program
Soft start cycle for applying edge protection
Winding cycle with reinforcement and adjustable number of windings
Soft start to reduce film tears on sharp pallet edges
Winding cycle with manual or motorized line formation (optional)

ADJUSTABLE PARAMETERS ON THE CONTROL PANEL:
99 storable winding programs
All function parameters can be set via the display
F00 - Screen lock program change
Adjustable machine speed around the pallet up to 90 m/min
Lifting carriage speed can be adjusted up and down independently of each other
Lift carriage speed from 1.3 up to 5.4 m/min
Lifting carriage speed down from 1.3 to 5.4 m/min
Number of wraps on the pallet foot (1 - 10 wraps)
Number of wraps on the pallet head (1 - 10 wraps)
Ijdpfjv Iqxujx Abgea
Adjustment pallet wrapping height
Foil application tension foot & head winding / ascent & descent independently adjustable
Foil pre-stretching foot & head wrapping / ascent & descent independently adjustable
Ergonomic height for foil change
Display foil consumption (option for PRS - PS)

FILM SLIDE TYPE “FM” WITH MECHANICAL BRAKE:
Brake can be adjusted manually from the carriage by means of a tension roller
Foil specification Max. outer diameter Ø 250 mm - core Ø76mm - height = 500 mm
Optional: stretch film with core Ø50mm or coreless stretch film
Standard connection values: 230 V - 1L+N+PE - 50 HZ

Optionally available:
-winding height up to 3500mm
-FILM CARRIAGE TYPE “FE” (ELECTROMAGNETIC BRAKE)
-FILM CARRIAGE TYPE “PRS” (POWER ROLLER STRETCH) 200%
- FILM SLIDE TYPE “PS” (POWER STRETCH) 120-400%
- PATENTED "ARYA" SYSTEM FOR PRS / PS - ARYA system for automatic foil blowing and cutting, incl. infrared remote control
-Manual cord formation on the foil carriage to strengthen the winding
-Automatic cutting unit (FE, PRS & PS)
- Machine version for temperatures down to -5° C (only version without HMI touch panel)

Other systems available immediately from the Ludwigsburg warehouse

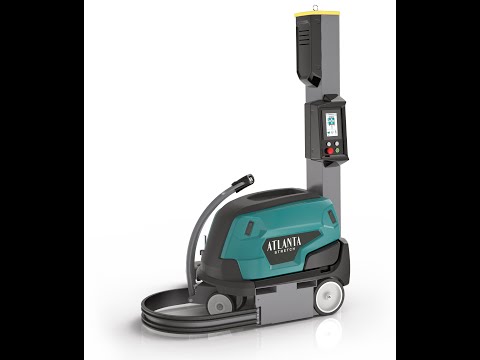

Illustration similar.
