Two shaft shredder

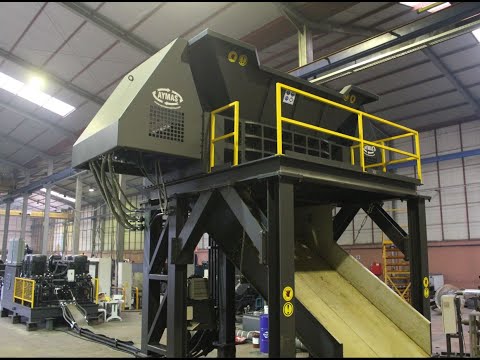

Aymas Recycling Machinery SH 360 Double Shaft Shredder

1. Electric Motors Total Power: 360 kW
2. Machine Weight: 44.000 kg
3. Shredding Capacity: 10 - 15 tons/h (Iron & Steel)
4. Blade Quantity: 78, Blade Thickness: 150 mm.
5. Loading Chamber Dimensions: 2350 x 4085 mm
Fpsdpfx Asdfc Uzeg Her
6. Shredding Chamber Dimensions: 1500 x 2000 mm
7. Replacement and maintenance of the blades can be easily done from the top of the chamber.
8. Cutting blades are made of material No: 2767
9. Main shafts are made of material: 42 CrMo4, 32-34 HRC (Twisting and breaking resistant )
10. All chamber walls will be covered with anti-wearing armor steel material HARDOX 500.
11. All static blades and distance rings will be made of HARDOX 450.
12. Speed: 4,5 – 6 rpm
13. The movement power of shafts will be provided by four planet reductors which are driven by four power-controlled bi-directional hydro motors. Hydraulic equipment will be PARKER brand or BOSCH-REXROTH.
14. There will be hydraulic oil and reducer oil cooling units separated from each other.
15. Each shaft will be able to move independently from each other.
16. The loading of the shredder can be done by crane
17. The machine will stop itself with an acoustic warning with the help of security sensors which are going to protect the machine against any harm.
18. There will be an automatic grease oiling system to keep bearings oiled automatically.
19. All electrical parts will be SCHNEIDER and SIEMENS brand.
20. The machine will be fully automatic with PLC control. There will be a touch screen on the control panel which will provide easy access to machine settings and process monitoring.
21. The machine will be under Aymas Makina San. Ve Tic. A. S. Guarantee against manufacturing defects for one (1) year or two thousand five hundred (2.500) operation hours.
22. The machine is CE certificated. The marking certifies that a product has met European Directives regarding consumer safety, health, or environmental requirements.
