Boring and dowel inserting machine

GÖTZINGER Power Drill -300 Video -

Bore diameter variabel mm
Number of heads horizontal 3 St.
Number of heads vertical 4 St.
Dimensions (L/W/H) 6100x1500x2300 mm
Weight 950 kg

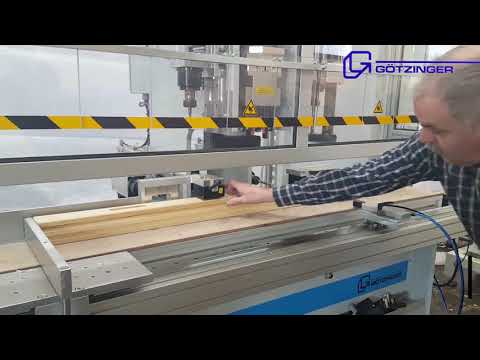

1 NEW drilling and milling center Götzinger Power Drill 300

With the Götzinger PowerDrill you can, depending on the type and design:

- Drill on the front and on the long side
- Dowels of front doors, pegs, fighters
- The drilling patterns are freely programmable
- You can drill: handle slides and corner bearings, with quick-change
multiple spindle
- You can: Milling lock case, pusher and PZ as well as 3D belts and
drill
- The machine has a horizontal and a vertical milling unit
- A simple control lets you create drilling and milling programs,
save and call again

Base frame in sturdy design, covered with sheet metal

Table top 1800 x 200 mm

Processing unit:

X-axis - 500 mm working travel
Y-axis - 0-120 mm
Z-axis - 0-105 mm (above table)

Horizontal aggregates:

1 horizontal drilling unit (dowel drilling unit left)
-----
Drilling motor 220 V, 1.1 kW
Collet holder ER 25
4,000 - 11,000 rpm adjustable

1 milling unit horizontal for lock case
-----
Milling motor 2.2 kW
Speed ??controllable 3,000 - 16,000 rpm
Collet holder ER 25

1 horizontal drilling unit (dowel drilling unit right)
-----
Drilling motor 1100 W, infinitely variable
4,000 - 11,000 rpm, with collet holder ER 25


Vertical aggregates:

1 drilling unit vertical
-----
Drilling motor 1100 W, infinitely variable
4,000 - 11,000 rpm, with collet holder ER 25


1 boring unit vertical - with quick-change boring head
-----
Drilling motor 1,1 KW, 3,000 rpm

Included:

1 boring head BKF 2/3, for corner bearing incl. Drill set, quick-change
-----
On loose item, drill assembly to customer fitting


1 boring head BKF 3, for olive incl. Drill set, quick-change
-----
On loose item, drill 1 cubo d = 25, 2 x dowel d = 10


1 milling unit vertical for lock case
-----
Milling motor 2.2 kW
Speed ??controllable 3,000 - 16,000 rpm
Collet holder ER 25

1 piece length stop right and left, usable length 2.7 m, NC controlled

Control: electro-pneumatic with three-axis
NC positioning controller and integrated machine function
Input via TFT display, 10 "color

Machine complete, CE-compliant, with 1 set of drilling tools,
DÜBO each 1 x d = 6,8,10,12 + 2 roughing cutters d = 16, ready for connection

Loading dimensions:
Machine L x W x H = 2.50 x 1.50 x 2.30 m, weight 850 kg
Gisdjif Az Uepfx Abxsl
Length stop L x W x H = 6.00 x 0.30 x 0.30 m, weight 100 kg

-----

Total price in above mentioned version, ex works: on request

Plus freight and installation / instruction


(Technical information according to the manufacturer - without guarantee!)
