Saw splitter wood splitter saw splitter

H&R Sägespaltautomat Elektro RM480

Automatic Wood Sawing and Splitting with the RM480-E from H&R.

The H&R Wood Processor RM480-E is the ideal assistant for your firewood processing operations.
The new 2025 model impresses with state-of-the-art technology and high performance for efficient sawing, splitting, and conveying of firewood.
Thanks to its innovative design and powerful hydraulic system, operating this wood processor is significantly simplified—ideal for professional forestry operations and ambitious DIY users alike.

Unlike competing models, with the RM480 from H&R, ALL functions are hydraulically operated, allowing for faster and easier workflow.

Product Features RM480-E
Performance: This processor is equipped with a robust 13 HP electric motor. Alternatively, it is also available with a 15 HP petrol engine (RM 480 B).
Log Length and Diameter: Logs up to 3 meters in length can be securely placed on the sturdy standard table. The splitter handles logs up to 48 cm in diameter and cuts them to lengths of up to 60 cm.
Hydraulic System: The machine features a hydraulically lowering saw bar. The hydraulic log clamp ensures secure fixation of the wood during splitting operations.
Hydraulic height adjustment of the splitting wedge is possible. You can choose between the included 4-way or 6-way splitting cross—for flexible splitting patterns and individual adaptation to your needs.

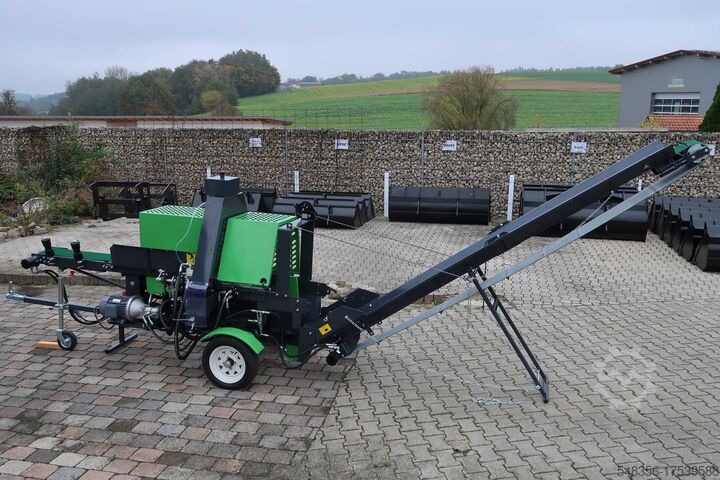

Conveyor Belt: The new 2.2 m long feed belt makes loading logs easier, while the lateral swivel discharge conveyor makes the removal of split wood effortless.
Mobile Operation: The processor—including trailer—weights just 750 kg and can be easily moved by hand thanks to its practical transport frame.

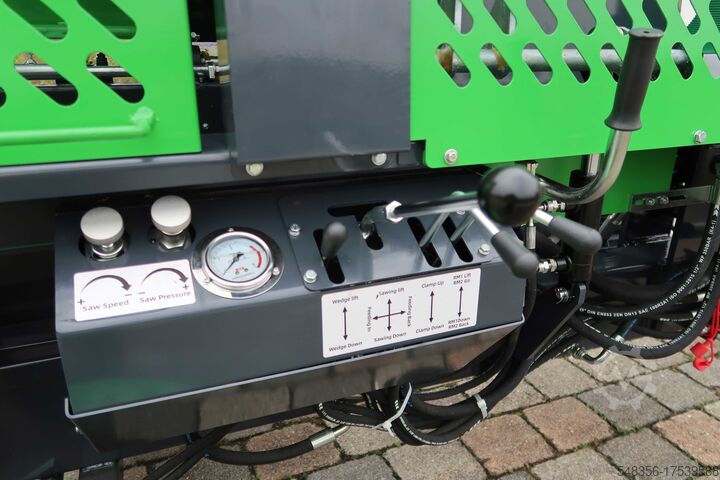

Simple Operation: All functions can be conveniently operated hydraulically, enabling long working hours without fatigue.

At a glance:
• Sawing, splitting, and conveying in a single work step
• All functions hydraulically operated
• Efficient and powerful motor
• Splits wood up to 48 cm in diameter and 60 cm in length
• Can handle logs up to 3 m in length (with accessory table even up to 6 m!)

Price
Electric Motor (13 HP) RM 480 E (net) €7,550.00
Petrol Engine (15 HP) RM 480 B (net) €7,385.71

Additional Options
With the optional lift table or a chain conveyor, logs up to 6 meters in length can be processed effortlessly.

Technical Details
Njdpfx Anou Dkufsqowf
Weight (incl. trailer): 750 kg
Shipping cost: €300 (transport in iron frame, without hydraulic oil)
Final assembly time: approx. 4 hours
Max. split wood diameter: 48 cm
Max. split wood length: approx. 60 cm
Max. log length: 300 cm
Motor: Electric, 13 HP
Hydraulic oil: 46

Hydraulic connections and control levers are pre-installed, making the machine operational in no time.

Take advantage of the powerful and well-engineered technology of the H&R RM 480 wood processor. Order today and make your firewood processing more efficient, safer, and more comfortable!
