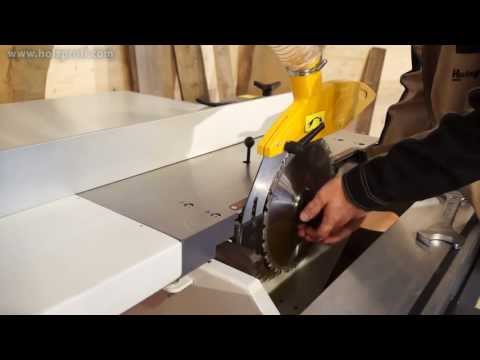

Panel saw S315 2300mm 4kW and Gradr

Holzprofi 7-S315-2300-4KW-G

Aluminum format sliding carriage with hardened steel guide rods.
Telescopic crosscut stop 1500 mm and two stop flaps as standard.
Stable extension table for processing large and heavy panels.
Rip stop with micrometric fine adjustment.
Slant adjustment of the saw blade up to 45° with reading according to scale.
Cutting width on the rip stop 950 mm. Degree grid on the extension ruler.

100% Made in EU (developed, built, quality-tested)

Technical data:
Format table length 2300 mm
Max saw blade diameter 315 mm
Spindle diameter 30 mm
Max. cutting width on parallel stop 950 mm
Max. cutting height, 90°/45° 102 mm/72 mm
Motor output 5 kW S6 (4 Kw S1)
Extraction nozzle diameter 120 mm
Weight 530 kg

Optional accessories:
Format table length: 1600 mm; 2544 mm; 2743 mm; 3000 mm or 3200 mm
Pre-scoring unit
Lajdpfjvrvc Hsx Akpod
Protective hood attached to the side
