Forging hammer 5t & Trimming press 630t

KRAMATORSK / TMP VORONEZ KRAMATORSK M2147 & VORONEZ K9538

Hot forging hammer 5 ton Kramatorsk type M2147
Nominal weight of dropping parts: 5000 kg
Actual mass of dropping parts without upper die: 5080 kg
Energy of blow: 12 500 kgm /125 kJ/
Ncjdpfx Adelnlq Dsmon
Max. number of strokes per minute: 50
Ram stroke: 1300 mm
Min. distance ram – die holder: 400 mm
Distance between columns: 800 mm
Die length: 950 mm
Die holder length: 1180 mm
Dimensions /L x B x H/: 3000 x 2000 x 6470 mm
Bottom anvil weight: 23 t
Upper anvil weight: 77 t
Total weight 140 t
+

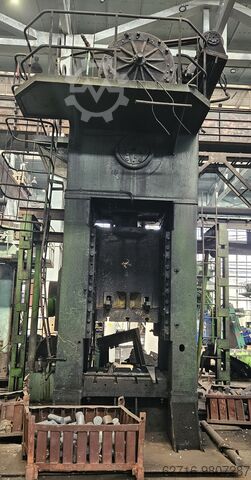

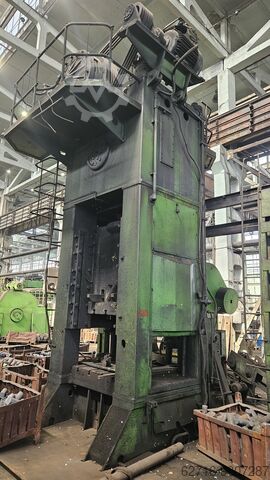

Trimming press Voronez type K9538
Capacity, ton: 630
Stroke 400 mm
Table size (left to right) 1250 mm
Table size (front to back) 1250 mm
Ram adjustment 180 mm
Strokes 20/15 min-1
Shut height 750 mm
Upper ejector: power 20 t, stroke 125 mm
Driving power 32 kW
Driving power overall 58 kW
Required space 3280 x 3470 mm
Height of machine above floor 6190 mm
Total weight 53 ton
