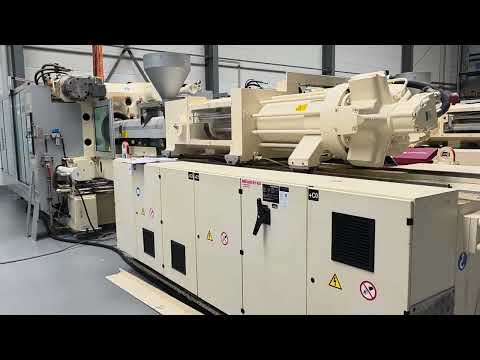

Injection moulding machine

KraussMaffei KM 800 - 6100 MX

Clamping force 8000 kN
Mould opening force, max. 560 kN
Travel force movable platen opening 89 kN
Travel force movable platen closing 92 kN
Size of mould platens (h x v) 1600 x 1550 mm
Distance between tie bars (h x v) 1120 x 1000 mm
Rjdpfx Aoymn Nfsbkop
Mould opening stroke 1600 mm
Mould height min/max 500/1100 mm
Max. daylight 2100 mm
Hydraulic ejector - stroke 300 mm
Ejector force 200/100 kN
Injection unit:
Screw diameter 95 mm
Ls/D ratio 23
Injection pressure 1795 bar
Stroke volume 3367 ccm
Shot weight (PS) 3064 gr.
Injection rate 690 ccm/s
Screw speed 116 1/min
Plasticising rate max. 104 g/s
Nozzle pressure 166 kN
Electric and Hydraulic Equipment:
Nominal capacity of pump motor 90 kW
Installed heating capacity 53 kW
Adjustable barrel heating zones 7
Oil Reservoir capacity 1500 ltr.
Dimensions and weights:
Dimensions of the machine ca. 11,00 x 3,00 x 2,60 m
Total machine weight 44500 kg
Max. mould weight 12200 kg

Accessories:
- Anti vibration pads


Additional Options:
- 1 x air valve
- tiebar pull system
- 3 x core pulls on movable plate
- 2 x core pulls on fix plate
- 20 x hot runner controller
- Robot interface according to Euromap 67
