Machining center

MAKA PE 70

Used machine MAKA PE 70
5-axis CNC machining center for machining wood and plastic.

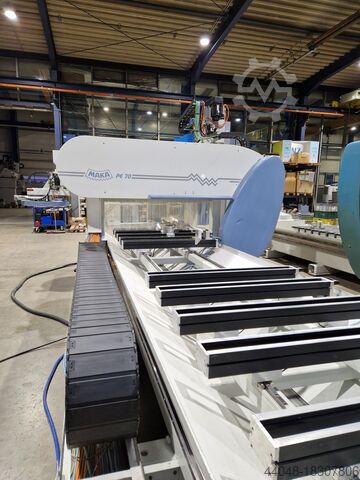

Machine in mobile portal design, with rack and pinion drive.
Year of manufacture: 2005
Technical data:
CNC control BWO 920
for 5-axis machining.
LCD display 10.4"
2 MB NC memory, mobile control panel.

Working areas in 5-axis operation, with tool diameter 60 / length 160 mm:
Y-axis: 5,500 mm
X-axis: 1,250 mm
Z-axis: 300 mm / with 180 mm installation height (upper edge of vacuum suction cup)

Working areas in 3-axis operation, with tool diameter 60 / length 160 mm:
Y-axis: 5,900 mm
X-axis: 1,250 mm
Z-axis: 300 mm / with 180 mm installation height (upper edge of vacuum suction cup)

A-axis 540° (rotation axis) B-axis 196° (swivel axis +/- 98°)
Rapid traverse speed X/Y axis 45 m/min. Z-axis 24 m/min. A/B-axis 10 m/min.

Milling unit:

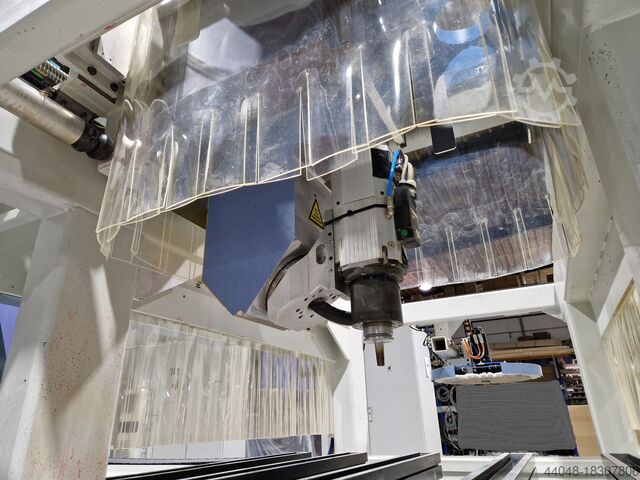

- 1 universal unit for 5-axis milling with 50° inclined head, power 7.5 kW (S1) 10 kW (S6), speed continuously adjustable up to 22,000 rpm, milling spindle HSK-F63, water-cooled.
- 1 NC height-adjustable chip collection system with slat curtain.

Tool magazine:
- HSK-F63 tool interface for automatic tool change system.
- 1 horizontal drum magazine, with 20 spaces for tools up to D = 90 mm, with sorted storage up to max. 160 mm. (Three spaces are required for this).

Machine table:
- 10 support tubes on linear guides with pneumatic release device for quick positioning.
- 2 x control circuits for "lifting / lowering" stops
- 2 x control circuits for "lifting / lowering" slide bar
- 2 x control circuits for "clamping / releasing" pneumatics
- 2 x vacuum control circuits with button for clamping and automatic reset through CNC programming.
- 1 chip conveyor belt integrated in the base frame, for removing chips and small waste up to max. approx. 100 x 100 x 100 mm.

Vacuum supply:
- Machine designed with vacuum system.
- 2 x vacuum clamping circuits
- 1 vacuum pump, suction capacity per vacuum pump approx. 130 m³/h, with tank.
- Vacuum supports with various suction plates.

Other:
- Automatic central lubrication.

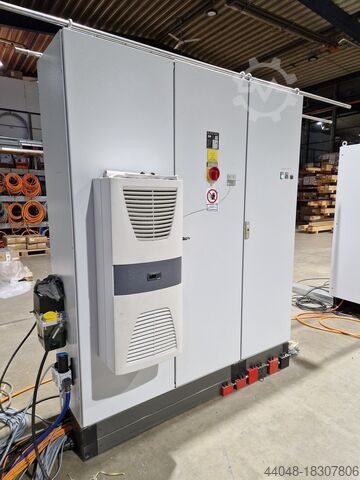

- Control cabinet with air conditioning unit.

Cedpsvr A A Tefx Al Ssgw
Work safety:
- Mobile protective cabin with safety bumpers on the operator side.

Repairs / maintenance before delivery:
- New maintenance.
- New slatted curtain on the portal
- New sliding window
- New Y-axis energy chain
- New Z-axis energy chain
- Various cables and air hoses replaced.
