LASER Industrie 4.0

MARKIERHELD Deutschland Faser Beschriftungslaser Industrie 4.0

Model 2022 for Industry 4.0!

Laser marking machine for:
= ᐳ Mark
= ᐳ tempering of metals
= ᐳ labeling of many materials
= ᐳ deep engraving

Extremely detailed and high-contrast engravings thanks to the JPT-MOPA system fiber laser source (var.pulse width on request)

Ncedpfx Ajd S I Smjbaol
Simple operation and handling!
Iayabahok

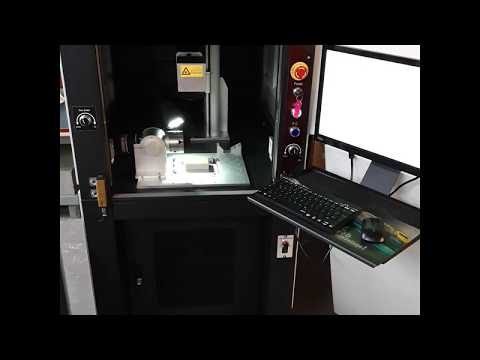

Our Exclusive XL laser marking system is characterized by:

• Professional fiber laser source JPT MOPAfix 20 or 30W power
• 1064nm, 20-400 kHz (for perfect starting engravings)
• "New Generation ECO" scanner unit
• 19 "PC control, no external card!
• very large viewing window with certified laser safety glass
• Scan area approx. 150 x 150 mm
• electrical height adjustment
• Full housing with 4 roles
• Mark "weightless" lift gate for safe.

EZCAD III software:
• Barcode and QR code support
• Serial number function
• Batch scanning from an Excel file
• Laser parameter finder per matrix over 2 parameters
• TCP IP connectivity for external components
• Industry 4.0 can be processed at any time using the TCP / IP protocol.
• Inputs and outputs for direct communication
• New look and feel and fresh design
• Even clearer and more intuitive operation
• 3D preview for rotary axis machining
• Performance increase of up to 50% through 64bit
• Improved stability through integrated control card
• Optional up to 4 axis controls (integrated)
• Optional DEEP engraving with Z axis
• More powerful algorithms for fast hatching.
• Completely redesigned galvo generation
• 2-fold laser pointer for checking the focus position.
• LED lighting of the marking area
• Connection possibility for external suction
• Start button and EMERGENCY STOP on the housing
• USB and network connection for data access
• Operating instructions and operating software in German
• protective housing acc. Laser class 1
• incl. 4 hours of training in our training center
(max. 2 people)

Do you need individuality? With pleasure. Choose
from our numerous accessories:
= ᐳ Camera systems for object detection
= ᐳ Fiber laser source in almost all variations
= ᐳ motorized and automatic height adjustment
= ᐳ Scanlab equipment
= ᐳ Automation for assembly
= ᐳ conveyor belts for inlet and outlet
= ᐳ 3D marking and GRAVIER function.
= ᐳ automatic focus adjustment
= ᐳ turntable
= ᐳ motorized sledge
= ᐳ Interlock system for labeling WITHOUT protective housing, but only with
PPE (personal protective equipment) for bulky parts


Our engraving lasers of course allow individual wishes in terms of design and size! = ᐳ Made in Schweinfurt!
