POINT to POINT BORING machine MASTERWOOD

MASTERWOOD SPEEDY 207

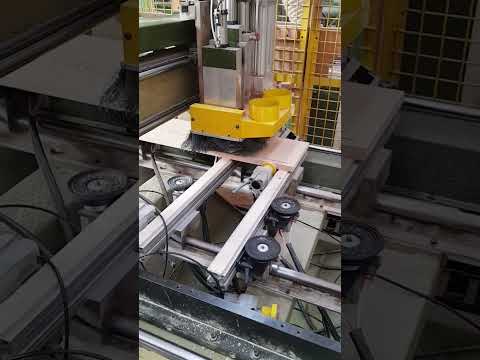

POINT TO POINT BORING machine with CN model MASTERWOOD SPEEDY 207
second hand machine
for custom furniture manufacturing, kitchen furniture, bathroom furniture, and various processes

Boring head with 5 independent vertical chucks and 1 double horizontal chuck
Saw for longitudinal cuts
Machine table with 1390 x 750 mm boring capacity and two side jump up stops handled by the control unit to execute with only one program and one intermediate hold panels up to 2800 x 750 mm size
Possibility of boring 2800 mm panels
Pneumatic tool displacement mm 60
Max panel thickness mm 50
Spindles rotation rpm 4500
Saw rotation rpm 6000
Vacuum pump motor Hp 1,5
Vacuum cup diameter mm 80
Front stop complete with 4 locking cylinders for drilling narrow workpieces and strips
Multitasking control complete with interactive graphic programming, 9" video, boring programs, optimizing working cycle, graphic, parametric, diagnostic modes
Overall dimensions - Machine : mm 2500 x 1800 x 1800 h - Weight kg 850
Lhedpfswd Irvex Aggsp
Overall dimensions - Electric board : mm 800 x 520 x 1200 - Weight Kg 120
