Fitting centre

RUCHSER RU-BM-3000 (Option 3500)

0 ja
Csdpfx Agot Tq Aaemsgp
Working width 3000 (3500) mm
0 ja

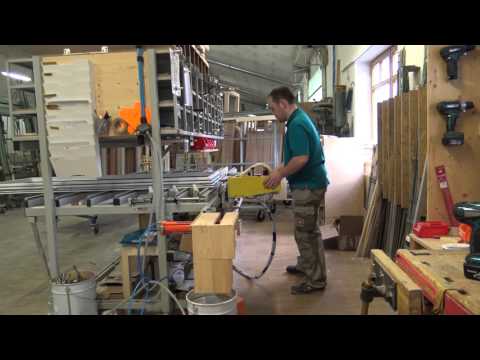

Ruchser RU-BM-3000 (option: 3500) Wing assembly table
-----
Herstellerbeschreibung:

Item 1.0 Article 0610000 RU-BM-3000
Sash assembly table, for sashes up to max. 2500 mm height
with RU-SH, special screwdriver length 3000 mm,
width 1400 mm, inclination of working platform
manually adjustable. Usable width 2500 mm

Holder for hardware shears or hardware punch.
10 swivel-mounted pendants for hanging the
sashes, completely pneumatically foldable for
unhindered movement of the sashes on the
table surface.
Device for scanning the sash fitting length
for constant and variable/centered handle fit
and any handle fit height for pre-drilled
sashes, colour-coded dimension recognition for the fittings.
Pendulum height can be set to 50 or 60 mm on one stop.
RU-SH, special screwdriver with pneumatic
depth cut-off mounted on carriage,
safety control, pneumatic height adjustment,
screw feeder with automatic switch-off of the filling container
manual insertion for a second screw length on the special screwdriver, accessories.
RA-8, turret stop for 8 screw levels mounted on the carriage.
RA-4 commuter rail manually adjustable in depth against left and right
one 4-fold turret stop each.
PSF - Pneumatic clamping device for sashes against the lateral stops.
Working height adjustable from 900 - 1000 mm.
Please specify whether felt, sliding or brush strips
should be used as a support.

Item 1.1 Article 6315
RU-BM-... adjusted to customer's fitting specification

Item 1.2 Article 0500000
Holder adjusted to customer punching press/
shear For mounting a customer-supplied
punching press or shear (other manufacturer) on the sash assembly table.
Please specify make when ordering !!!
-----
Price RU-BM-3000 in the above version ex works: on request!
-----

Fitting bearing options for RU-BM-3000:
-----

Version with fixed fitting bearing: Price EUR 4,409.00
Article 0630000 RU-BL-30/30 Fixed fitting storage unit
Mounted above the leaf assembly table
Length 3100 mm, depth 1250 mm, with 3 shelves with 10 compartments each,
divided by partitions.

Freestanding version: Price EUR 5,291.00
Item 0710000 RU-SBL3000/30 Freestanding storage unit,
Length 3100 mm, depth 1250 mm, height 2050 mm,
upright frame on the front without supports,
30 compartments, 10 in a row, each divided by partitions and
a continuous shelf at the top, size of the compartments: width 280 mm, height
150 mm

4 pcs. Angle supports for corner deflections: Price 614.00 EUR
Side length 120x120mm; inclination approx. 3°
The front edge of the angles is bent up 5mm
to prevent accidental unloading.
2 pieces on the left and 2 pieces on the right under the first shelf
of the fitting.
-----

Surcharge for RU-BM-3500
-----
Article 0610300 RU-BM-3500 Sash assembly table for sashes up to max. 3000 mm height
with RU-SH, special screwdriver length 3500 mm,
width 1400 mm, inclination of working platform
manually ble width approx. 3000 mm
Surcharge RU-BM 3500 to RU-BM 3000: EUR 2,831.00

Fitting bearing for RU-BM-3500 (only free-standing possible): Price EUR 6,714.00
Item 0710007 RU-SBL3800/36, free-standing fitting storage
Length 3800 mm, depth 1280 mm,
height 2060 mm...
