Cross cut saw

SALVAMAC Legend 550

cutting width max. 330 mm
Cutting height max. 150 mm
Saw blade diameter 550 mm
Motor output 7,5 kW
turning speeds 2800 U/min
Required air-pressure 6-8 bar
work height max. 900 +- 20 mm
Dimensions (L/W/H) 530x869x1217 mm

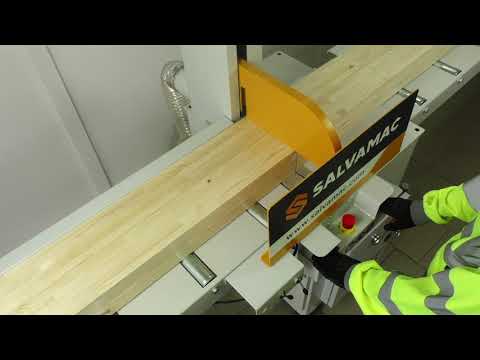

SALVAMAC Legend 550 the semi-automatic chop saw
----- -

Maximum cutting area 220x150/330x50 mm
(When sawing stacked boards, note: rear stop height 100 mm)

The structure is made entirely of sturdy, thick-walled steel,
which is painted throughout and reinforced. A solid one
Floor mounting system is equipped with flanged steel feet,
to ensure secure attachment.

The two-hand control is ergonomically positioned for comfort
and efficient operation.

Engine power of the saw motor 7.5 kW.

The cutting speed is adjustable via a pneumatic controller,
to enable precise adjustment. The system also has a
Shock-absorbing system to minimize vibrations and ensure worker safety
to improve.

HM circular saw blade, diameter 550 mm, Z=96.

The upper pressure hood has an electro-pneumatic control for
precise operation. The pressure hood movement system is innovative
Ball bearings operated with double dust protection and automatic lubrication system,
which ensures smooth functionality.

In addition, the electrical system is compliant with CE standards. CE models
are standard with at least 1 meter long inlets and outlets
(undriven rollers or flat table) to facilitate operation
optimize and meet security standards.

Technical data:
-----
Saw cross section: 220x150/330x50 mm
Saw blade motor power: 7.5 kW
Saw blade diameter: 550 mm
Saw blade type: HM Z=96
Saw blade rotation speed: 2800 rpm
Air consumption per cycle: 7 Nl
Intake port: 1 x 120 mm / 1 x 100 mm
Air pressure: 6 - 8 bar
Voltage: V 400/50 Hz 3 phase
Worktop height: 900 mm +- 20 mm
Color: Ral 7035
-----
Total price ex works: on request!
-----
Options like:
- Inlet/outlet with undriven rollers/flat table
- Mechanical or pneumatic stops
Ndedovnv T Ropfx Ah Rsd
- Electronic length stop / slider Salvastop (Combo series)
- Movable front protection
and more on request!
-----
(technical data according to the manufacturer without guarantee!)
