Fiber laser for marking - LAS 28 20W
Systemtechnik Hölzer GmbH Beschriftungslaser LAS 28 - 20 Watt

Name: Systemtechnik Hölzer GmbH Beschriftungslaser LAS 28 - 20 Watt
Brand: Systemtechnik Hölzer GmbH
Availability: InStock

година на производство

2025

Состојба

Нов

Локација

Kronberg im Taunus Германија

Fiber laser for marking - LAS 28 20W Systemtechnik Hölzer GmbH Beschriftungslaser LAS 28 - 20 Watt

Systemtechnik Hölzer GmbH Beschriftungslaser LAS 28 - 20 Watt

Прикажи карта

Податоци за машината

Ознака на машината:: Fiber laser for marking - LAS 28 20W

Произведувач:: Systemtechnik Hölzer GmbH

Модел:: Beschriftungslaser LAS 28 - 20 Watt

Година на производство:: 2025

Состојба:: ново

Функционалност:: целосно функционален

Цена и локација

Локација:: Westerbachstraße 4, 61476 Kronberg im Taunus, Deutschland

изнајмување:: можно е

Повикајте

Детали за понудата

ID на огласот:: A19149376

Референтен број:: 20 Watt Markierlaser LAS 28

Ажурирање:: последно на 17.09.2025

Опис

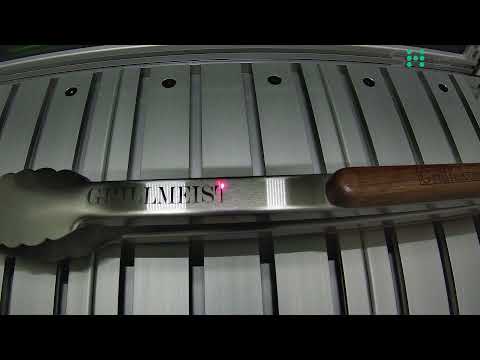

The universal laser marking system LAS 28 from Systemtechnik Hölzer GmbH can be used for a very wide range of marking applications. With the integrated fiber laser you can mark almost all materials such as steel, carbide, aluminum and plastics.
Depending on the requirements, the system can be equipped with a 20, 30 or 50 watt fiber laser. For permanent marking, the use of the laser is necessary in many industries.
With the powerful laser software, texts, numbers, 2D codes, QR codes and logos can be realized with just a few clicks without extensive programming knowledge. Serial and article numbers are automatically incremented by the software after prior setting. In addition, the software can read data (variable information such as drawing numbers, project designations, etc.) from existing tables and automatically transfer them to predefined areas. The use of a hand scanner is also possible.
The standard equipment includes a laptop incl. holder with Windows operating system. Optionally, the laser model LAS 28 can be equipped with a rotary axis (3-jaw chuck) for marking cylindrical parts. Further options, such as lateral extensions for marking long parts, can be realized.

Made in Germany

- Fiber laser 20W (Optional: 30W, 50W)
- Wavelength 1064nm
- marking field size 150x150mm (optional: 200x200)
- optional: rotary axis (3-jaw chuck)
- optional: digital height measuring system
- optional: exhaust system (incl. activated carbon filter)
- optional: Autofocus system
Ksdpowkpwaefx Aftedw
- signal light for indication of operating status
- marking software EZCAD (optional additional laser software)
- Pilot laser (simple preview, contour preview)
- focus finder (simple focus adjustment)
- max. part height approx. 270mm
- electrically adjustable Z-axis (adjustment of working plane)
- frame made of aluminum profile
- connection 230V
- air cooled
- Laptop with Windows operating system
- dimensions: 800x 600 x 1660mm (LxWxH)
- weight: approx. 80 Kg
