Creasing and folding machine

BACCIOTTINI GROUP SRL OXO MULTI SKILL

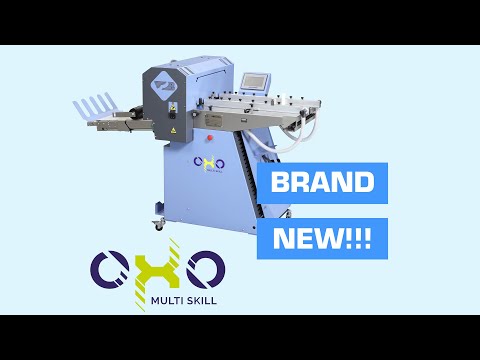

Bacciottini Group OXO MULTI SKILL, machine from showroom.

OXO MULTISKILL is a compact creasing and folding machine with automatic non-stop loading feeder With few simple operations OXO MULTISKILL can switch from a normal creasing machine to a creasing/folding unit. Once in the folding machine mode after the fold type, sheet length and paper thickness have been selected, the machine adjusts automatically ready for production. Additional supplementary creases can be added along with ones necessary for the folding of a product. It allows a quick tool change over from the creasing to perforating just in a few seconds.
TECHNICAL FEATURES:
Minimum size in creasing: 8×10 cm | folding: 8×15 cm
Maximum size in creasing and/or in folding 50×70 cm (with optional extension feeder 50×100 cm) – minimum and maximum size can change depending on the kind of fold
Sheet weight in creasing: from 80 to 600 g.s.m. in folding: from 80 to 400 g.s.m.; from 0.08 mm to 0.4 mm of thickness – variable according to the quality of the paper
Min. distance creasing 0.1 mm between creases | 0.1 mm from front edge | 0.1 mm from tail edge Production A4 in creasing: 9,000 sheets per hour (with 1 crease.) | in folding: 9,000 sheets per hour (with a single fold)
Godpfx Aov Rbkmoh Ejkb
Maximum number of creases 40 – possibility of doing a greater number of creases than those necessary to fold the sheet
Power supply 400 Volt three phase + Neutral 50 Hz 4 Kw

This machine from showroom is equipped by a standard V-shape creasing kit.
All other optional tools are available and can be added to its equipment:
-digital creation kit
-standard perforating kit 2/1, 3/1, or 4/1
-micro perforating kit
-extension feeder 100 cm
