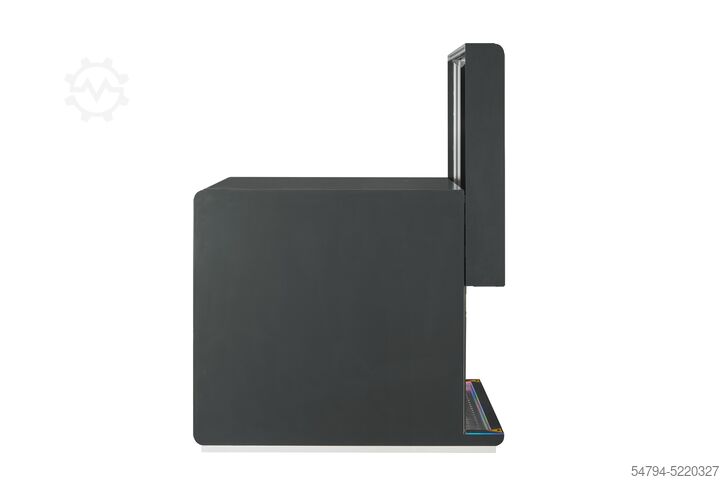

Fiber marking laser + cutting 120W

BN Laser GmbH & Co. KG JEWELliner BN120XT-HA-X

JEWELliner "CUT" 120W model series "PremiumPlus"
Cutting & Marking in very short working time.
- Developed and produced in Germany -

Other models, laser power and options on request.

Engraving Laser (fiber technology) with security housing „LASER CLASS 1“.

Compact designed, all components are in the housing and will be air cooled.

Maintenance free!

Our engraving laser JEWELliner "CUT" is very usefull to cut precious metals and soft metals till max. thickness of 2.5mm.
Thicker metals are possible, please contact us for more informations.

More materials to cut or engrave like all metals, ceramic and some plastics, are possible.

Applications can found in the jewellery ans also in other production areas.
The machine dimension is very compact to integrade simple into a production area.

Samples to cut:
gold, silver, brass, carbon, aluminium

Samples of material to mark: steel, stainless steel, gold, silver, titan, aluminium, brass, copper,
brounce, carbon, ceramic, makrolon

Possibilities of application:
- graphic engraving (logo, draw, handdraws, signatures)
- serial numbers
- barcode, datamatrix, QR-code
- ring inside (f.e. name, date, symbol, handwrite) optional
- ring outside (f.e. name, endless graphic, endless pattern) optional
- bangles inside/outside - optional
- text (text straight, circled text, bowed text, text symbols)
- handwrite
- finger print
- photo engraving (photos, pictures)
- micro engraving (micro text till 0.15mm character high)
- round engraving (engraving on round or bowed surfaces) optional

The main parts of JEWELliner "CUT" ( BN120XT-HA-X ) :
- fiber laser unit with scan head and focus pointer
- security housing „Laser Class 1“ with 280x200mm security glass
- electrical automatic door opening
- emergency button
- 180° view area to the marking field
- electrical z-axis for automatic focus positioning
- configured engraving software

Specification:
- laser technology: fiber laser
- outputpower CW: 120W
Ijdpfef Ul Uiex Aa Ujih
- available frequency: 2.1 - 6300kHz MOPA
- connection type data: USB 2.0
- wave length: 1064nm
- lens (delivery): F-Theta 163
- marking field size: 110 x 110 mm – bigger or smaller possible
- focus range: ca. 2 mm
- min character high: 0.3 mm
- min. line width: 0.023 mm
- cooling: air cooled
- maintenance: no service necessary
- power: AC 110V / 240V – 50/60Hz – short cut save
- dimension: L850 x W660 x H680 mm
- weight: ca. 80kg

The engraving laser is after the delivery immediately ready to use. In this way, the machine can be integrated in the production very fast.

The machines can be inspected and tested by appointment.

Pictures can be different!
