Briquetting press

Di Piu BRIK MB90

DI PIU BRIK MB90 machine, ready for immediate operation. The machine is designed for reliable and efficient briquetting. Thanks to its high capacity and robust construction, it is ideal for industrial use.

The machine has 15 operating hours, as an official commissioning has been performed.
Buyer receives 6 months factory warranty.
Machine inspection is possible at the factory in Italy: Di Più Systems Srl, Via dell’Innovazione 11, 36042 Breganze (VI), Italy

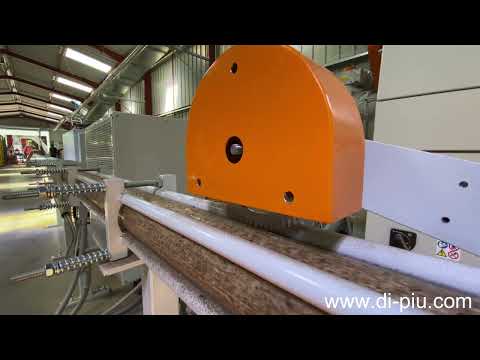

The Di Piu BRIK MB90 mechanical briquetter is an automatic machine for compressing wood, sawdust, and other waste materials into briquettes.

Recommended input material moisture: between 8% and 12%, particle size between 1 mm and 12 mm.

Technical specifications:
- Production capacity: 1,100 – 1,800 kg/h
(with sawdust density 160–200 kg/m³)
- Briquette diameter: 85 mm
Bsdpfowrp Eaex Agbslr
- Main motor power: 55 kW
- Total installed power: 62 kW
- Piston compaction pressure: 2,000 – 2,500 kg/cm²
- Vertical screw with reducer: 3 kW
- Oil pump: 1 kW
- Oil pump for pressing head closure: 0.55 kW
- Feeder with screw and adjustable speed: 1.5 kW
- Oil lubrication system for bronze bearings: 90 liters
- Briquette output sensor (automatic shutdown when material runs out)
- Protective covers for moving parts
- Oil pressure sensor
- Control panel
- Storage hopper for input material (accumulator)
- Level sensors for feed system control
- Machine weight: approx. 5,200 kg

ADDITIONAL: NOVAPAC wrapping machine
Optional purchase of the NOVAPAC wrapper, fully compatible with the Di Più BRIK MB90 and other machines, an ideal solution for automatic packaging of briquettes directly after pressing.

Year of manufacture: 2013
Price: €19,000
Equipment visible in the last 6 pictures
