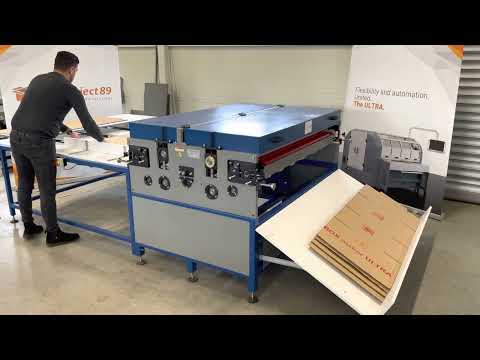

FLEXO PRINTER MS 1700 TC

EMproject89 MS 1700 two color

Flexo Printer is a machine for printing on processed and unprocessed plates. It has possibility of printing on any type of corrugated cardboard. Furthermore, the machine is available in configurations with one or two colors. Cliché thickness is not fixed and it is possible to use any standard or bespoke cliché thickness. High quality print is achieved through fine tuning of the rollers that apply ink to the clichés. Machine is available in two working widths of 1200mm and 1700mm, the smaller one having print width of 1000mm and the bigger one outputting prints that are 1400mm wide.

Technical characteristics:
Iedpfed Iqugjx Ah Tsau
Working width: 1700mm // Other possibility 1200mm
Print width: 1400mm // Other possibility 1000mm
Capacity: up to 36pcs/min
Print height: ≈ 950mm
Ø cliché roller: 292mm
