Dowel boring machine - CNC controlled -

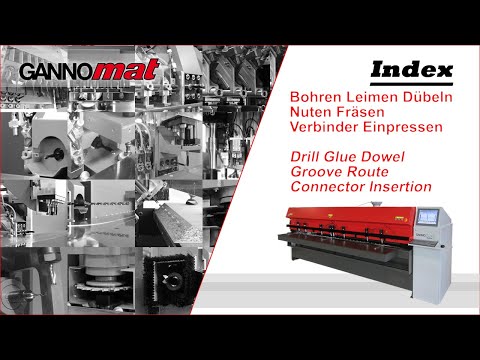

Gannomat Index 130 - 471L130

CNC-controlled drilling, gluing, and dowel insertion machine

Complete in standard configuration with:
- Support with linear guide consisting of:
1 pc. single-spindle horizontal drilling unit, motor 0.65 kW, stroke 70 mm
Tool speed selectable via operator software (3000/5000/8000 rpm)
1 pc. blow-out, gluing, and dowel insertion station for dowels Ø 8 mm, dowel length 25–50 mm
- Fully automatic, electronically controlled central lubrication
- X-axis NC controlled, with working length 700 mm, max. traversing speed 95 m/min
- Z-axis manually adjustable via mechanical digital counter, position on support table 5–40 mm
- Dowel insertion projection adjustable from 7–20 mm via mechanical digital counter, drilling depth 0–35 mm
(with drill length TL 70 mm), automatically set with insertion projection
- Closed glue system with 6 bar glue pressure via glue nozzle, for glues with viscosity from 150 to 350 mPas
- Glue quantity steplessly adjustable via operator software
- Selector switch GLUE/WATER to flush glue system, each with:
1 stainless steel container for 7.5 kg glue and 7.5 l water
- Indicator lamp for residual glue level in glue container
- 1 pc. left side stop, 1 pc. right side stop (all removable)
- 2 pcs. start buttons for individual operation with 1–2 workpieces
Hfsdpfew Sgm Hjx Ad Def
- 2 pcs. pneumatic angled clamping cylinders 10° for workpiece thickness up to max. 80 mm, workpiece length (Y) min. 70 mm
- 1 pc. extraction funnel, connection Ø 80 mm
- 1 pc. TCT controller with:
Integrated industrial PC, incl. Beckhoff TwinCAT soft PLC, operating temperature range 0–50°C,
15" capacitive touchscreen TFT industrial display, operating system: WINDOWS 10 IoT LTSC (long term support channel)
- Programming via menu-guided user software, drilling distances freely programmable with
ABSOLUTE, RELATIVE, or GRID dimensioning, automatic workpiece mirroring and process
optimization, 2 working fields assignable with different programs, graphical workpiece display,
parametric programming, zero-point shift, programmable work lists, plain text error diagnosis

- Integrated options:
- Electronic optical glue monitoring system G.I.C. (Glue Insert Control) for 1 pc. glue nozzle, art. no. 0470-0810

- 1 EASY CLEAN system, for automatic test glue shots before starting the drilling/gluing/dowel insertion program.
E.C.S. for 1 pc. glue nozzle, art. no. 0471-Z010

- 1 single-spindle vertical drilling unit from ABOVE, 0.65 kW,
(3000/5000/8000 rpm), position (Y) manually adjusted via mechanical digital counter
Adjustable from 5–40 mm, drilling depth (Z) max. 30 mm (with drill length TL 57 mm)
Workpiece thickness (Z) max. 50 mm, workpiece length (Y) min. 130 mm
(incl. drilling depth compensation, e.g., for Häfele Minifix) Art. No. 0471-0830

- 4 vertical angled clamping cylinders 10° with mount, additional, Art. no. 0470-0850

Available: short notice
