Broaching machine

Karl Klink RSI 20 x 1500

Manufacturer: Karl Klink
Model: RSI 20x1500
Year of manufacture: 1966
Weight: approx. 6,700kg
Machine No.: 2455

General / technical data:
Used vertical hydraulic internal broaching machine with 3 broaching stations
Pulling force: 20,000 kg
Broaching stroke: 1,500 mm
Broaching stations: 3 units
Distance between broaching stations: 2 x 145mm
Mounting diameter of the draw heads: 3 x Ø 85mm
Passage width between the columns: max. 580 mm
Nedpjwql Rvefx Ahrswl
Cutting speed: hydraulically steplessly adjustable from 1 m/min up to max. 7 m/min
Return speed: hydraulically steplessly adjustable from 7 up to max. 25 m/min
Machine space requirement: (w x d x h) approx. 1,500 x 2,100 x 4,600 (h max. 5100 with raised tool feeder)
Power supply / Connected load: 380Volt 50 HZ / 14kw

Accessories / special features:

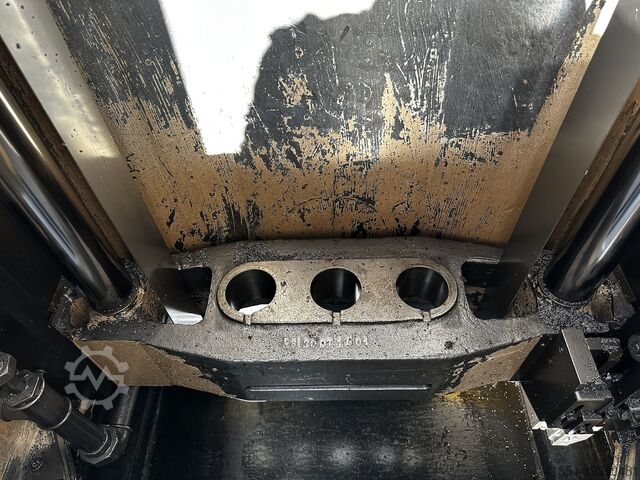

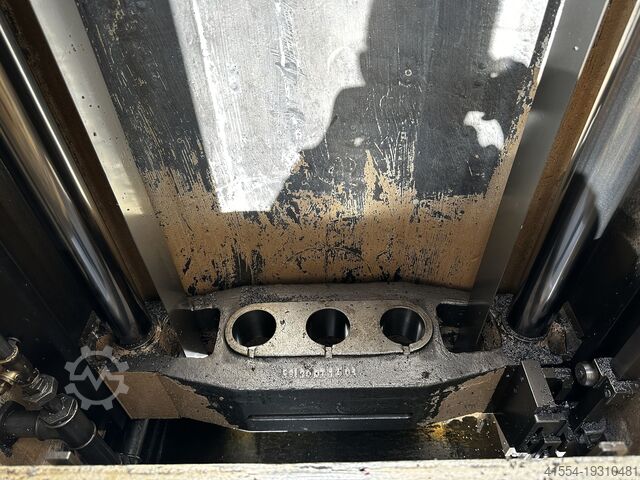

The machine is equipped with a workpiece table with 3 holes for 3 broaching stations. The tool clamping system is designed for spring-mechanical locking in the drawbridge and in the feeder.
The machine has an integrated coolant system.

Remarks:
The machine is designed for use in series production, for optimal use, ideally a foundation (pit) is required or optionally a platform. Draw heads and ejector needles are available on request. The machine can be inspected under power at our warehouse.

General information:
We constantly have a large selection of approx. 80 used broaching machines with pulling forces from 3,000 kg to 63,000 kg in horizontal as well as vertical design in stock. A large part of the broaching machines in stock are ready for demonstration and can be inspected.
If required, we can offer you used equipment such as draw heads, ejector needles, broaching tools and other specific accessories.
We operate as a contract broaching company and can also assist you with technical questions based on 50 years of experience in broaching technology.
