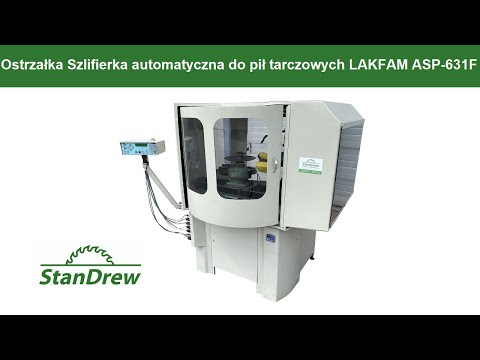

Automatic grinder LAKFAM ASP-631F

LAKFAM ASP-631F

– Year of manufacture: 2006
– Documentation
– Declaration of conformity

TECHNICAL SPECIFICATIONS:

– Maximum diameter of sharpened saw: 600 mm
– Number of teeth on sharpened saw: 1–300
– Grinding wheel motor power: 0.55 kW
– Grinding wheel diameter: 125 mm
– Grinding wheel mounting diameter: 40 mm
– Extension mounting diameter for grinding wheel: 20 mm
– Tilt angle of grinding wheel relative to horizontal saw: +/- 180°
– Vertical movement of grinding wheel: +/- 75 mm
– Spindle rotational speed: 3574
– Cross-table travel: 300 mm
– Longitudinal table travel: 540 mm
– Working feed speed: 0.2 – 2 m/min
– Sharpening depth per pass: 0 – 0.99 mm
– Programmable sharpening passes: 0 – 99
– Programmable spark-out passes: 0 – 9
Crodpfew H Sgbox Aa Teh
– Dimensions (L/W/H): 1050 x 820 x 1700 mm
– Weight: 300 kg
