Laser marking

Markierheld MH-20 ST Industrie 4.0 XL

Model 2025 for Industry 4.0!

Laser marking system for:
=ᐳ Marking

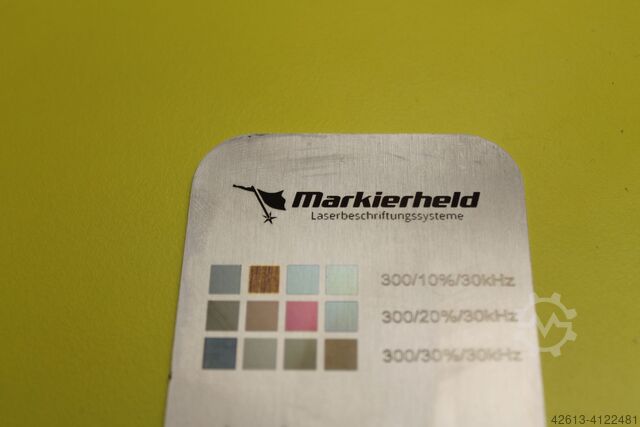

=ᐳ Tempering metals
=ᐳ Marking many materials
=ᐳ Deep engraving
Hedpfx Aed S H Nvsdiefb

Extremely detailed and high-contrast engravings using the JPT-MOPA system fiber laser source (variable pulse width on request)

Easy to operate and handle!

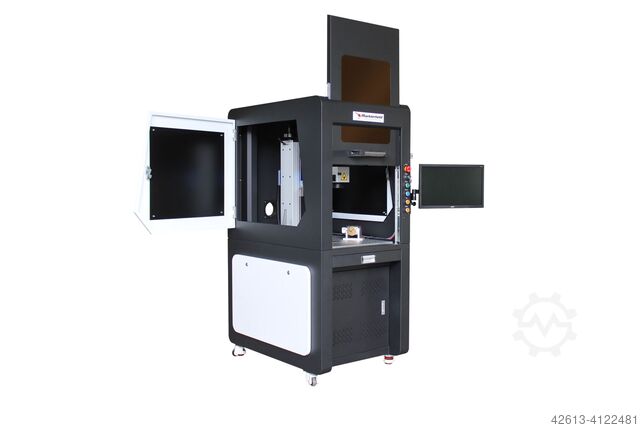

Our exclusive XL laser marking system is characterized by:

• Professional fiber laser source JPT MOPAfix 20 or 30W power
• 1064nm, 20-400 kHz (for perfect engravings)
• Scanner unit "New Generation ECO"
• 19" PC control, no external card!
• Very large viewing window with certified laser safety glass
• Scanning area approx. 150 x 150 mm
• Electric height adjustment
• Full enclosure with 4 rollers
• "weightless" lifting door for safe marking.

EZCAD III software:
• Barcode and QR code support
• Serial number function
• Batch scanning from Excel file
• Laser parameter finder via matrix using 2 parameters
• TCP IP connectivity for external components
• Industry 4.0 the status can be processed at any time via the TCP/IP protocol.
• Input and output Outputs for direct communication
• New look and feel and fresh design
• Even clearer and more intuitive operation
• 3D preview for rotary axis processing
• Performance increase of up to 50% thanks to 64Bit
• Improved stability thanks to integrated control card
• Optional control of up to 4 axes (integrated)
• Optional DEEP engraving with Z-axis
• More powerful algorithms for fast hatching.
• Completely redesigned Galvo generation
• 2-way laser pointer for checking the focus position.
• LED lighting of the marking area
• Connection option for external extraction
• Start button and EMERGENCY STOP on the housing
• USB and network connection for data access
• Operating instructions and operating software in German
• Protective housing in accordance with laser class 1
• Including 4 hours of training in our training center

(max. 2 people)

Do you need individuality? Of course. Choose from our wide range of accessories: =ᐳ Camera systems for object recognition =ᐳ Fiber laser source in almost all variations =ᐳ Motorized and automatic height adjustment =ᐳ Scanlab equipment =ᐳ Automation for assembly =ᐳ Conveyor belts for infeed and outfeed =ᐳ 3D marking and ENGRAVING function. =ᐳ Automatic focus adjustment =ᐳ Rotating unit =ᐳ Motorized slides =ᐳ Interlock system for labeling WITHOUT protective housing, but only with PPE (personal protective equipment) for bulky parts Our engraving lasers naturally allow for individual requests in terms of design and size! =ᐳ Made in Schweinfurt! Images may contain options! Laser engraving machine, laser marker, laser marking, laser labeling, laser engraving, laser engraver, laser marking, laser marking, laser engraver, laser engraving machine, laser engraving machine, laser marking machine, laser marking system, laser marking system, laser marking system, labeling laser, marking laser
