Mobile Hearth Furnace - Electric

PadeltTherm HEU 9196/700

Technical details:

max. temperature: 700° - übliche Temperatur: 400 - 650°C Grad
size of opening: B: ca. 2200 x T: ca. 3800 x H: ca.1100 mm
program control: Siemens S7/300 IM 151-7
Bodpfx Ahsu R Dhxj Iswn
interface: Ethernet
container volume: Ofen-Volumen: 9,2 m³ l
control voltage: 24 / 230 Volt
current type: 1P/PEN; 50 Hz
Voltage: 400 V
elect. connected power requirement of heater: 3 x 3 x 21 kW = 189 kW
flow rate: 3 x ca. 9.000 = 27.000 m³/h
weight of the machine ca.: 8,0 t
dimensions of the machine approx. HxWxD: ca. 3.9 x 3.8x 4.8 m
dimensions electric cabinet: ca. B: 2.400 x T: 400 x H: 2.000 mm
transport dimensions LxWxH: ca. 5,2 x 3,6 x 2,9 m

Electrically heated circulation oven

Electric annealing furnace whose housing is made of profiled sheet steel and lined with lightweight refractory bricks/ firebricks.
Application/processes: mainly annealing of low-alloy and high-alloy wood cylinders (e.g. alloyed gray cast iron)
Usual operating weight 5000kg max. 8000kg

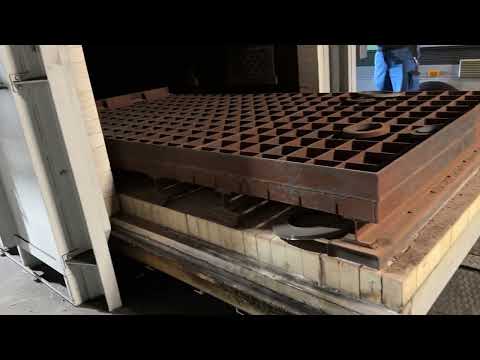

The parts are placed directly crosswise on the bogie hearth/grate in the flow device. (Height above floor approx. 750mm without grate)
Heating integrated in oven ceiling
Circulation fan (3 compact fans) on oven side wall, 3 x 4.0 kW = 12.0 kW
Forced cooling (1 cooling air fan)
Program control via 25 programs with 50 program sections per program
Oven door/lifting door with SWE gear motor approx. 2.2 kW (frequency-controlled)
Bogie hearth drive approx. 3.0 kW SEW geared motor (frequency-controlled)
incl. center rail (chain drag)

used, good condition


*
