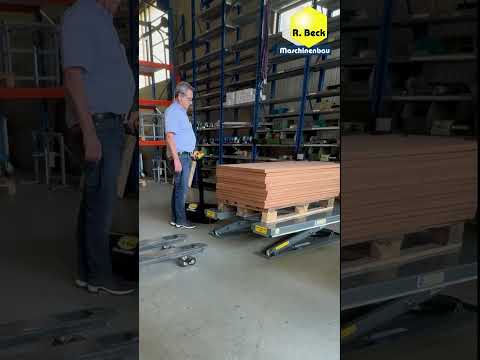

Scissor lift table

Reinhold Beck Maschinenbau GmbH SUB 1000

Technical description with the following key data:

Load capacity: 1000 kg static line load
Useful stroke: 775 mm
Overall height: 85 mm
Total height: 860 mm
Platform length: 1450 mm
Platform width: 1140 mm
Material: Smooth sheet metal
Lifting time: approx. 20 sec. for the full useful stroke
Lowering time: load-dependent
Electrical connection: 3 x 400 V / 50 Hz + protective earth, with 16 A CEE plug and 4-meter cable
Motor: 1.1 kW
Paint finish: Blue-grey RAL 7031
Unit placement: freestanding
Control box: Dead man’s control incl. 2 m cable
Total weight: approx. 270 kg

Hodoiwi Injpfx Adljnp
Standard version:
The lifting tables comply with EN 1570 E and are marked with the CE symbol.
The steel parts are cleaned, primed with rust-protective paint, and painted with a two-component polyurethane paint.
The lifting tables are equipped as standard with all-round safety cut-off strips made of aluminum and with mounting supports for repair and servicing.
Our lifting tables are designed for approximately 5 lifting cycles per hour with full load in 8 hours per day. For more intensive operation, we offer special lifting tables.
