Flexible Manufacturing System

RIELLO VERTIFLEX VFX 450-2/1-0/1-V

x-travel 450 mm
y-travel 400 mm
z-travel 320 mm
Kljdpjtqqqmofx Af Aju
tool taper HSK 63
spindle turning speed range 0 - 10000 U/min
rapid traverse 30 m/min
control GE FANUC Series 16 i
System for processing fittings, valve housings, etc.
consisting of

1 used flexible manufacturing cell (transfer machine) make RIELLO,
model VERTIFLEX VFX 450-2 / 1-0 / 1-V, YOM 2010, with 2 pcs.
3-axis machining modules, each with 8-pos. tool turret,
travel paths module 1: X1 / Y1 / Z1 = 450/400/320 mm,
travel paths module 2: X2 / Y2 / Z2 = 450/400/320 mm,
tool fixture HSK 63,
rotary table with 2 integrated workpiece carriers á 400 mmø
(B axis per workpiece carrier 360 x 1 °), coolant through spindle
Acc.: chip conveyor, coolant device

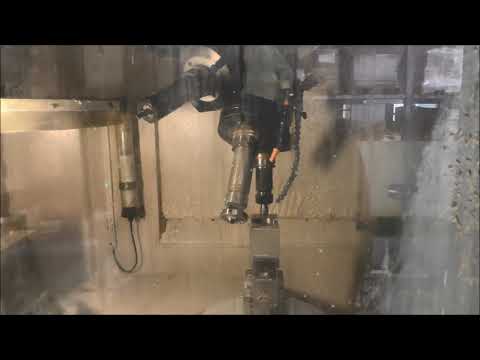

connected by ABB handling robot with

1 used flexible manufacturing cell (transfer machine) make RIELLO,
model VERTIFLEX VFX 450-2 / 2-0 / 1-V, YOM 2003, with 3 pcs. 3-axis
machining modules, each with 8-pos. tool turret,
travel paths module 1: X1 / Y1 / Z1 = 450/400/320 mm,
travel paths module 2: X2 / Y2 / Z2 = 450/400/320 mm,
travel paths module 3: X3 / Y3 / Z3 = 450/400/320 mm,
tool fixture HSK 63,
rotary table with 2 integrated workpiece carriers á 400 mmø,
(B-axis per workpiece carrier 360 x 1 °), coolant through spindle
Acc.: chip conveyor, coolant device
