Spraying machine VEN SPRAY with dedusting machine

Venjakob VEN SPRAY Comfort

Pos.1
VEN CLEAN Smart dedusting systemCompressed air dedusting for cleaning the workpieces to be painted
from dust on profiled workpiece surfaces.
Five rotating blowing stars are installed. These remove the dust
from the surface. The loosened dust is extracted on both sides by suction shafts.
on both sides. An external extraction system is required on site. Technical data:
Roller transport length: 2,060 mm
Ljdpfju U Ryyex Adhehi
Roller pitch: 85 mm
Working width: 1,300 mm
Total width: 1,800 mm
Drive power: 0.25 kW
Exhaust air volume: 4,000 m³/h
To be provided by the customer
Compressed air consumption: 980 Nl/min.
Ionisation as nozzle bar, not EX) with
compressed air nozzles,
Compressed air consumption 840LN/min.

Pos. 2

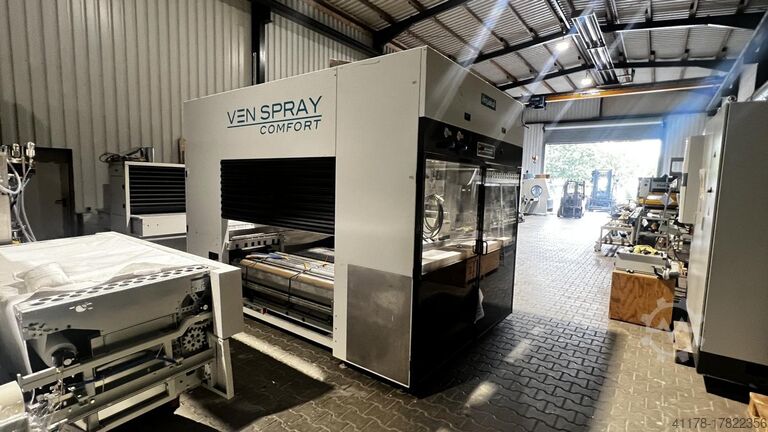

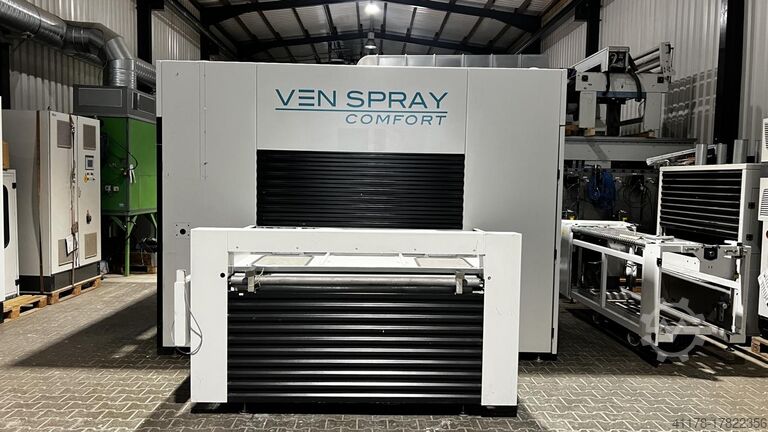

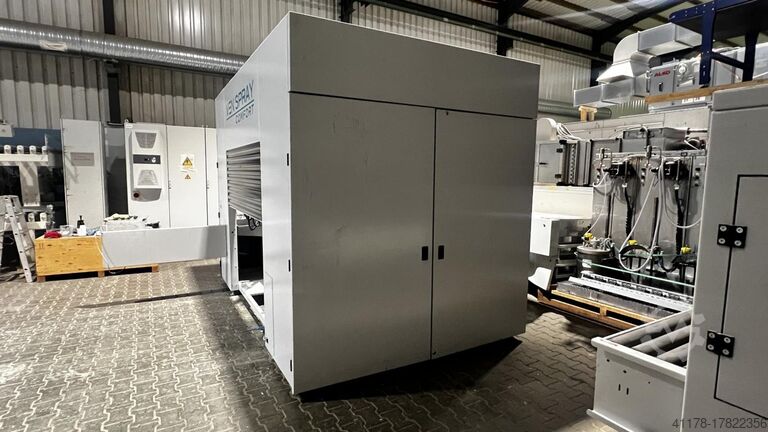

Automatic spray gun VEN SPRAY Comfort- Manufacturer Venjakob
- Type. VEN SPRAY Comfort CNC 7000
- Year of construction 2017
- Working height approx. 930mm+-20mm
- Working width 1300 mm
- Operating side left
- Price for overhauled machine
- Actual condition, machine not overhauled
- Gun drive in duo version

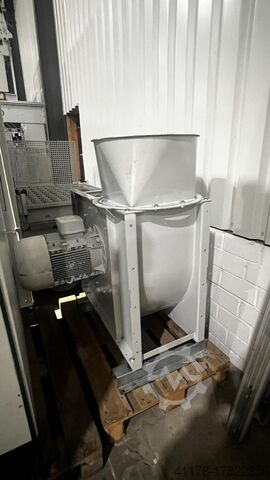

- Dry extraction system
- Extraction nozzle diameter 500 mm
- Exhaust air capacity 10.000 m³/h
- Belt conveyor system
- Infinitely variable feed speed ~ 2-6 m/min
- With belt cleaning system with doctor blade in tungsten carbide design
- With option to install a second beltcleaning system.
Software and electric parts inside.
- Gun control, touch screen CNC7000
- Installed colour circles 1 pc. (optionally more possible)
- Supply air filter cover
- Suitable for water-based paints
- Suitable for solvent-based paints
- Control cabinet, free-standing
- Length: 4.350 mm + (2,060 mm)
- Width: 3.540 mm
- Height: 2.600 + 440 mm
- Volt, Hz 400 / 50
- El. Power 23,33kW / 63A
- Colour RAL 7035
- Location, in stock Voltage fluctuations max. +/- 5 %

_____

Optionally, we can also provide you with a quotation for the assembly and start-up of the system, as well as training for your employees.
We also offer regular maintenance and servicing of the machine on request.
For further information, get in touch with us!
