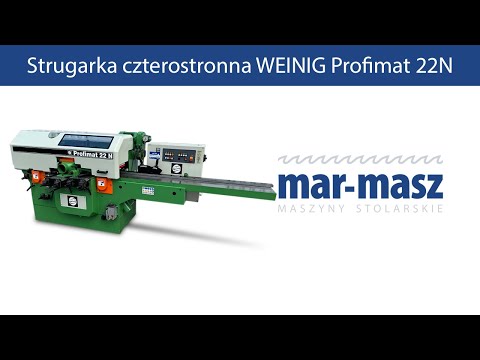

Four Side Planer

WEINIG Profimat 22N

Catalog number 7706

TECHNICAL DATA
- Maximum workpiece width: 220 mm
- Maximum workpiece height: 120 mm
– 5 spindles:
1) Bottom horizontal: 220 mm, 4 kW
2) Right vertical: 120 mm
3) Left vertical: 120 mm; both 2 and 3 are 7.5 kW
4) Top horizontal: 220 mm, 5.5 kW
5) Bottom horizontal: 220 mm, 4 kW
- All spindles adjustable up/down, right/left
- Spindle diameter: 40 mm
- Pneumatic feed rollers
- 4 powered, toothed feed rollers from above including 1 double roller
- Top driven outfeed roller, smooth rubber
- Bottom driven outfeed roller, rubber
- Feed on drive shafts (Cardan shafts)
- Stepless feed speed adjustment: 6–36 m/min
- Feed motor: 2.2 kW
- Lifting motor: 0.25 kW
- With brake
- Electric thickness adjustment
- Central table lubrication
- Infeed table length: 1970 mm
- Extraction port diameter: 4x120 mm, 140 mm
- Dimensions (L x W x H): 3450 x 1600 x 1450 mm
- Weight: 1112 kg
Ledpfsw Edhiex Aaajai

Net price: 44,900 PLN
Net price: 10,690 EUR (based on the exchange rate of 4.2 EUR)
(Prices may vary depending on market fluctuations)
