Profile surface grinding machine

Asyst Jung A 525 PNC 100 DUO Grind

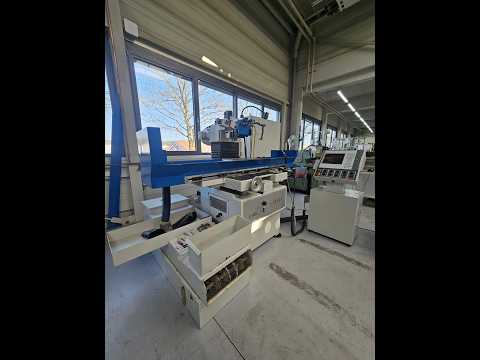

For sale is a DUE Grind surface grinding machine, brand Asyst, model A525 PNC 100. This machine has been completely overhauled from a Jung 525 surface grinder.

A key feature of this machine is its ability to operate both conventionally as well as with CNC control.

The machine is in very good, near-unused condition and is ready for immediate use.

Technical Data:
Year of manufacture:
Table length: 600 mm
Table width: 200 mm
X-axis traverse (stroke): 600 mm
Y-axis (grinding height): 500 mm
Z-axis travel, end positions +/-: 230 mm
Table speed X-axis: 0.3-25 m/min
Magnetic chuck dimensions: 600x200 mm
Optional 3-point dresser: 350x200 mm
Max. workpiece weight (incl. magnet): 200 kg
Working area: 400 mm
Y-axis traverse speed: 0-1,000 mm/min
Z-axis traverse speed: 0-1,000 mm/min
Y-axis positioning accuracy: 0.001 mm
Cgedpfx Aoyx D Ipel Uou
Z-axis positioning accuracy: 0.001 mm
Y-axis measuring system resolution: 0.0001 mm
Grinding wheel dimensions: 250x30x51 mm
Spindle speed: 100-3,800 rpm
Spindle motor power: 100-3,800 kW
Automatic dressing with stationary diamond unit TA 3/5

Machine dimensions: 2,900x2,320x1,840 mm
Weight: 2,300 kg

Transport and loading can be organized Europe-wide at an additional cost if desired.

Prices net plus VAT.

Viewing is possible by appointment. Please contact us—our team looks forward to assisting you.
Trade-in or exchange is possible!
