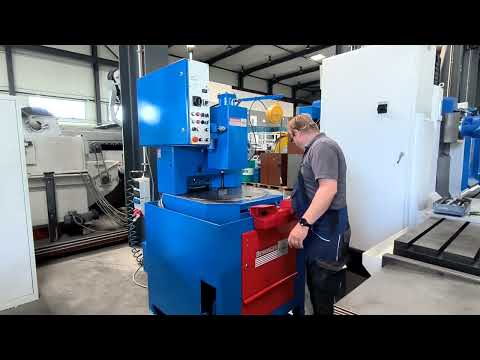

Circular saw

BEHRINGER-EISELE PSU 450 H

Technical details:

saw blade diameter: Ø 400 - 450 mm
hole of sawblade: Ø 50 mm
revolution per minute: Spindel: 6 / 12 / 24 / 48 (2 step) U/min
revolution per minute: Motor: 1400 / 2800 U/min
cutting range 90 degrees: round: Ø 150 mm
Gsdju Nimqspfx Abxsbg
cutting range 90 degrees: square: 140 x 140 mm
cutting range 90 degrees: flat: 400x30 / 345x70 / 300x95 mm
table-size: Ø 700 mm
table rotating: 360 °
air-pressure connection: 6 - 8 bar
total power requirement: 3,6 kW
weight of the machine approx.: 1900 kg
dimensions of machine: T:1,5 x B:1,0 x H:2,35 m

CIRCULAR SAW SEMI-AUTOMATIC - PROFILE CIRCULAR SAW MACHINE - UNDERFLOOR SAW

Profile circular saw with two-hand control
for sawing materials: steel as solid material, pipes and profiles, taking into account the cutting area.
Cutting speed depends on the material to be sawn
Mitre: 30° - 45° - 90°
Operating pressure/clamping pressure: 50bar / 30bar adjustable
Hydraulic pump 2.2 kW power output
Coolant system with pump
Operation via control panel / two-hand operation



*
