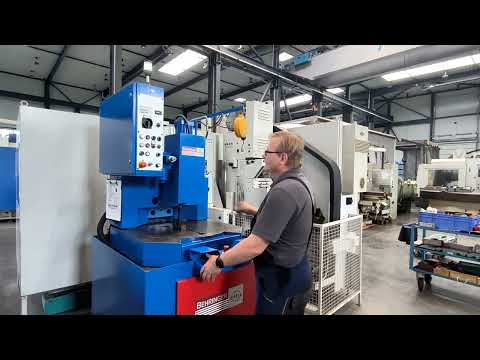

Circular saw

BEHRINGER-EISELE PSU 450 H

Technical details:

Saw blade diameter: 450 mm
cutting diameter: 150 mm
hole of sawblade: 50 mm
saw blade diameter: 400 - 450 mm
saw blade rpm: 6 / 12 / 24 / 45 U/min
cutting range 90 degrees: square: 140 x 140 mm
cutting range 90 degrees: round: 150 mm
cutting range 90 degrees: flat: 400 x 30 / 345 x 70 / 300 x 95 mm
table-size: Ø 700 mm
table rotating: 360 Grad
clamping capacity: 30 bar
electrics - voltage/frequency: 400 / 50 V/Hz
Csdpeu Nit Refx Ap Aegu
total power requirement: 3,6 kW
weight of the machine approx.: 1600 kg
dimensions of machine: 1,5 x 1,0 x 2,35 m

SEMI-AUTOMATIC CIRCULAR SAW - PROFILE CIRCULAR SAWING MACHINE - UNDERFLOOR SAW
for sawing materials: steel as solid material, pipes and profiles, taking into account the cutting area.
Cutting speed depends on the material to be sawn

Circular saw with hydraulic material clamping (clamping pressure adjustable)
miter +30° to - 90°
Equipped with electro-hydraulic control
Hydraulic pump 2.2 kW; 23 l/min.
Coolant system integrated in the machine base
Piece counter


*
