Notching machine

BOSCHERT Mini S Digital

Cutting performance (90° notch)
- Normal steel: 4.0 mm
- Stainless steel: 3.0 mm
Cutting angle: 30-120°
Cutting length: 150 x 150 mm
Working height: 900 mm
Table: 1000 x 650 mm
Motor power: 3.0 kW
Weight approx. 900 kg
Dimensions: 1250 x 1000 x 1160 mm (LxWxH)

Equipment:
- Angle adjustment 30° - 120 ° continuously

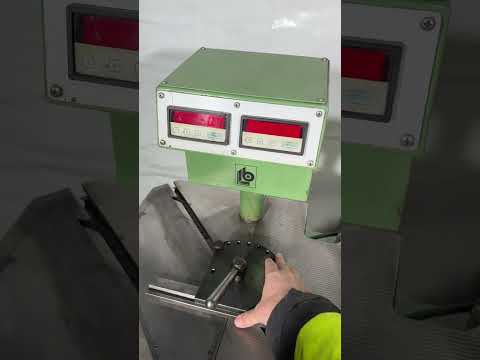

- 2 digital displays for the adjustable stops
* Set-up stroke
* Single stroke
* Continuous stroke
- Plexiglass protection for better transparency
- Hardened blades also for cutting stainless steel
- Adjustable stroke height setting

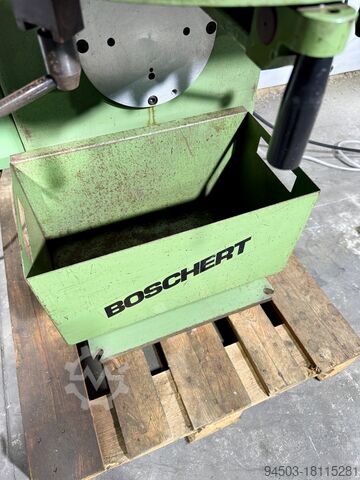

- Removable cutting container
- Freely movable foot switch
Gbsdpfx Agevk I Avo Ajw

BOSCHERT angle adjustment:
- the one-piece 30° The upper blade is directly connected to both a left and a right lower blade within a tool - for each notch over 30°, the notch is made once to the left and once to the right. - the swivel adjustment is carried out pneumatically immediately after the first notch has been completed. The machine can be demonstrated on site with power on. All information is provided without guarantee. Subject to errors and prior sale.
