Measuring Machine

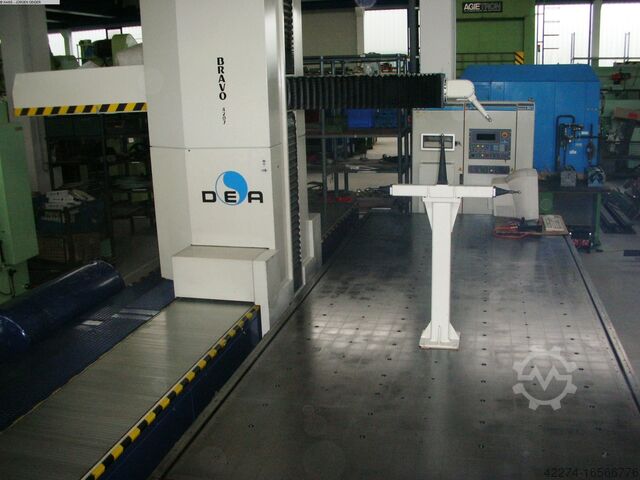

DEA BRAVO 4207

x-travel 4070 mm
y-travel 1185 mm
z-travel 1985 mm
total power requirement kW
weight of the machine ca. 15 t
Kdedpfx Afjt Hwt Eetsw
dimensions of the machine ca. 6000 x 4500 x 4000 m
Consisting of: Working Range:

Measuring column, longitudinal movement, X Axis 4,070 mm
Measuring slide, cross, as Y Axis (measuring head) 1,185 mm
Measuring slide, vertical, as Z Axis (vertical) 1,985 mm
Adjustment of measuring head, roll axis 360 °
pitch axis 220 °

Measuring table 5,000 x 2,000 mm

Weight, approx. 15,000 kg
Space required 6,000 x 4,500 x 4,000 mm

Accessories / Special Features :

o 3D tracer head, with turning/swivelling device.
o Universal 3D Measuring Software, KOROS CAD 5.2.0 from November 2001 (with lots of enhancements), as well as HOLOS UX for manual or automatic measuring of all geometric elements and free-form surfaces, ideally on passenger car bodies, engineering parts and large forming tools.
o Separate switch cabinet (Master F1) with programming possibility and a mobile manual control console.
o Steel clamping table, which can be levelled, 2,000 x 5,000 mm.
o Machine was maintained annually by DEA Company, and the software was updated regularly.



This unit is ideal for measuring complete car bodies.

Condition : Very good. Machine is assembled and can be inspected under power.
Delivery : Ex stock, as inspected.
Payment : Net, after conclusion of contract.

Thank you for your interest. We have a selection of measuring machines on stock.
