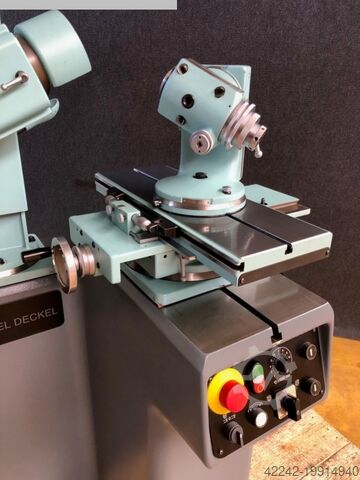

Tool Grinder - Universal

DECKEL S11 Speed

max. grinding diameter 238 - 620 mm
grinding length 190 mm
workpiece length 380 - 940 mm
spindle turning speed - stepless 2 - 12000 U/min
current capacity 380 kVA
power capacity - grinding motor 1,1 kW
total power requirement 2,2 kW
weight of the machine ca. 0,6 t
!!! We have almost all spare parts for the Deckel S 11 machines in stock !!!

!!! Accessories can be varied as desired !!!

We would be happy to trade in your used Deckel S 11 - contact us!

2189

400 V, 50 Hz, with CEE plug and cable

Colour: body pastel turquoise RAL 6034
Stand blue-grey RAL 7031

Motorized height adjustment, axial grinding spindle adjustment

Machine like new !!

* Accesories:

* Sk ??40 dividing head with 24 R dividing disc
* Graduated disc 20 R
* Tightening screw M 16 69871
* Spiral and relief grinding device with rack housing
* Counter bearing with 4 tailstock centres
* Center point with driver
* Dressing device
* Dressing diamond
* Radius grinding device SK 40 complete with setting gauge
* Steel holder for ditto
* Support fingers with sliding blades
* Support finger holder
* Complete dust extraction without suction
* Halogen light
* Tooth support complete
* Setting gauge
* Plier sleeve and jacking nut and wrench
* 35 collets 1.0 - 18.0 mm increasing by 0.5 mm
* 1 set of SK 40 direct collets 6, 8, 10, 12, 14, 16, 18, 2, 22, 25 mm
* 6 jaw grinding chuck
* 3 taper reducing sleeves Sk 40 x Mk 1, 2, 3, 4
* clamping nut
* 20 grinding wheel chucks
* 2 protective hoods
* various diamond/borazon discs

* Instruction Manual & Keys, Parts List, Wiring Diagram
* Complete set of grinding instructions

Machine is partially overhauled and with electrical acceptance report!


!! Various measuring optics (new or used) with measuring cross
sled available !!
