Pipe cutting machine

DNE-Laser Member of Bystronic group D-Tube F 2460 K2T4 6kW

Tube Cutting Machine DNE - Member of Bystronic group

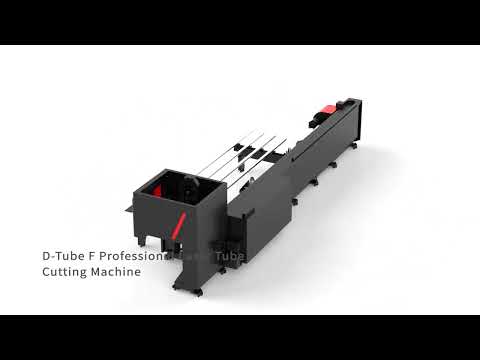

The fiber laser tube cutting machine DNE LASER D-TUBE F is an innovative product specifically developed for the profile and tube cutting market. It features precise control of tube support devices and chucks, offering exceptional performance. The machine is versatile in cutting materials and types, covering a wide range of applications, including carbon steel, stainless steel, aluminum alloys, and more. It can process different profiles such as round tubes, square tubes, U-channels, I-beams, and custom-shaped tubes for cutting, drilling, and contour cutting. It is a highly automated, efficient, and cost-effective tube cutting system.

Description
Laser power: 6000 watts
Round tube: 15 - 240 mm
Square tube: 15 x 15 - 240 x 240 mm
Rectangular tube: 15 x 15 - 230 x 230 mm
Max. positioning accuracy X,Y-axis: 0.05/1000 mm
Max. positioning accuracy U-axis: 0.05/1000 mm
Max. tube weight: 40 kg/m
Max. tube weight: 500 kg
Length: 14000 mm
Width: 2000 mm
Height: 3000 mm

40° cutting head Bevelcut
Njdpfxjwnbhrs Admjcn
Semi-automatic loading
Exhaust system 7.5 kW
Nesting software
