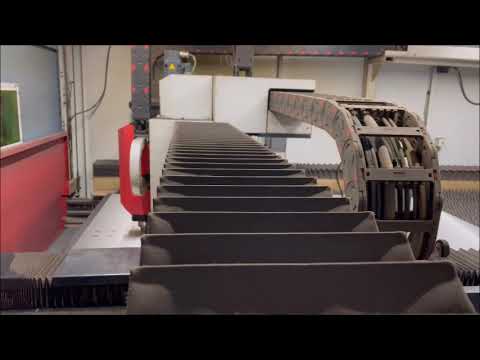

DURMA HD-F III 3015

Fiber laser, fiber laser cutting system with flat bed and tube laser
Laser cutting machine, laser cutting system, laser machine
Manufacturer: DURMA
Type: HD-F III 3015 III BH-IPG 2kW
Serial No.: 822817712 Year of manufacture: 2017
with IPG laser source
SIEMENS SL 840D + CAD software + nesting software
Working area: 3000 x 1500 mm
Tube cutting device: up to Ø 400 mm
Laser power: 2000 watts (fiber laser)
Output power: 0.2..2 kW
Wavelength: 1070..1080 nm
IPG power consumption: 6.4 kW/hour
- Polarization random
- Collimating focal length FC 100 mm
- Focusing focal length FF 150 mm
- Fiber diameter in single mode 50, 100, 200, 300 µm
- Max. power consumption 42 kW
- Power consumption machine 20 kW
- Power consumption filter 4 kW
- Power consumption cooler 10+1 kW
- Power consumption resonator 7 kW

Mild steel sheet thickness max. 12 mm
- Stainless steel sheet thickness max. 6 mm
- Aluminum sheet thickness max. 6 mm
- Copper sheet thickness max. 3 mm
- Brass sheet thickness max. 6 mm
Working area X-axis 3060 mm
Working area Y-axis 1530 mm
Working area Z-axis 160 mm
Sheet size max. 3048 x 1524 mm
Sheet weight max. 200 kg/m²
- IPG fiber laser resonator (see separate document)
- Water cooling unit for laser source and cutting head (see separate document)
- Under-table extraction and extraction filter system (see separate document)
- with 2-position shuttle table
- Tube laser with 4-jaw chuck and large spindle bore next to the flat bed
Ksdekdnv Tepfx Amyedt
- Guides for tube laser on linear guides
- with CAD software
- with nesting software
- with tube laser software
very good condition
