Printing machine

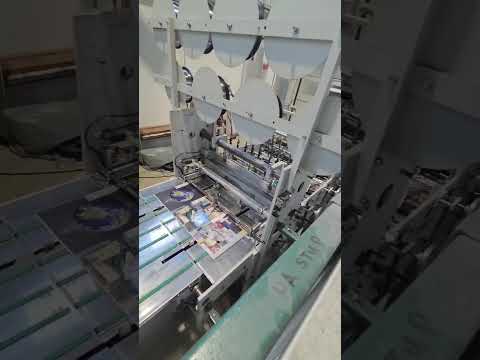

E.C.H. WILL GmbH Model Alpha RF

Exercise Book Manufacturing Machine
E.C.H. WILL GmbH / Model Alpha RF (manufactured in 2012)
For the production of finished exercise books with pre-printed covers

Technical Data
Mechanical paper web speed/minute: max. 300 m
Working strokes/minute – converting section: max. 60
At 4-up production – books/hour: max. 14,400
Reel width: max. 960 mm / min. 580 mm
Reel diameter: max. 1,200 mm
Printing length (cylinder circumference): max. 670 mm / min. 300 mm
Cut-off length – cross cutter: min. 300 mm
For exercise book production: max. 500 mm
For skid production: max. 670 mm
Adjustment steps: 5 mm
Number of cuts/minute – cross cutter: max. 1,000
Finished article size range (unbound side x bound side):
max. 245 x 480 mm
min. 145 x 145 mm
Sheet count: min. 5 / max. 50
Article thickness (unfolded): max. 5 mm

Main Equipment
Reeling Units
• 2 x shafted reeling units
Ruling Tower
• 1 x ruling tower for a maximum of 4 ruling inkers
Note:
The ruling tower is equipped for either:
• 2-color ruling from 1 web, or
• 1-color ruling from 2 webs
Longitudinal Perforating Unit
(for 1 web operation)
• 1 x longitudinal perforating unit
Cross Cutting Unit
• 1 x 1-knife cross cutting system
allowing quick and easy knife exchange and adjustment
Anti-Static System
• Anti-static equipment for paper handling
Sheet Overlapping Device
• 1 x sheet overlapping device
Sheet Counting and Collating Unit
• Sheet counting and collating system
Cover Feeders
(1st / 2nd / 3rd / 4th Cover Feeder)
• Will automatic feeder for pre-printed covers
Deep Pile Delivery
• Deep pile delivery unit, in-line system
for collecting large size sheet sections
Stitching Unit
• Wire size: No. 24–26
• 9 x stitching heads
Sectional Folding Unit
• 1 x sectional folding unit
Square Back Pressing Unit
• 1 x square back pressing unit
Trimmer
• 1 x fore-edge trimming knife
• 3 x separating knives
• 2 x lateral trimming knives
Corner Rounding Device
• Corner rounding unit for finished exercise books
Book Turning Unit
• Book turning station for even stacking
Book Stack Discharge
• Book stack delivery
• Book flipping & title design mixing delivery table
(retrofitted)
Rcjdpfjzq Av Tex Ab Rsd
Electrical Equipment
• Device for maintaining suitable temperature
for electronic components in switch cabinets
Pneumatic Equipment
• Pneumatic system for machine operation
