FLAT GRINDING MACHINE

ELB-Schliff smartLine BD6 ZRT XC

★ Exceptionally well-maintained machine from the liquidation of a renowned toolmaker – be sure to view our other listings as well ★

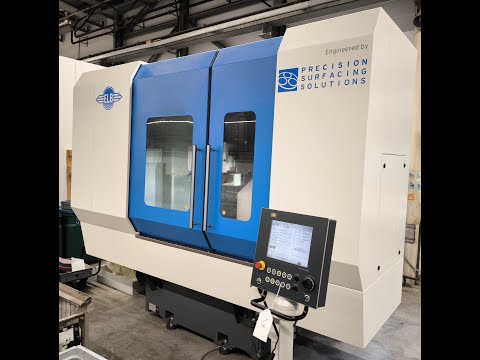

❗ Surface Grinding Machine / Profile Grinding Machine ELB smartLine BD6 ZRT XC ❗

Year of manufacture: 2022
Machine number: 53321
Condition: Very good
Terms of delivery: Free loaded onto truck – unpacked
Location: 73347 Mühlhausen

Availability: By arrangement – Collection period for the machine is fixed for 10.02. and 11.02.2026 (week 7). Collection outside of this timeframe is not possible.

Terms of payment: Advance payment by bank transfer
Internal Ref. No.: JO4
Available for power-on inspection: YES – By appointment

Technical details:

Control: xpressCube
Grinding length X: 600 mm
ZRT = X-axis with high-dynamic timing belt drive
Grinding width Z: 600 mm
Grinding height Y: 500 mm on the worktable (with 400 mm grinding wheel)
Table load capacity: 500 kg on table, 270 kg on magnetic chuck
Table mounting area: 960 x 616 mm
Workpiece clamping area: 600 x 600 mm
Grinding spindle power: 10 kW
Grinding spindle speed: 1000 - 3600 rpm
Max. grinding wheel dimensions: 406 x 100 mm
Automatic central lubrication
Fully enclosed work area
Handheld operating device
Electro-magnetic chuck 602 x 602 mm (version with air blast holes)
Paper band filtration system
Extraction unit

Operating hours approx.: 657
!!! Spindle hours max.: 150 !!!

Further technical data available on request

Scope of delivery:

Manuals
Available accessories

Dimensions & weights:

Installation dimensions L x W x H approx.: 4000 x 3500 x 2900 mm
Isdpfx Adoxg Rptsisht
Weight approx.: 7,000 kg

If you have any questions or wish to arrange a viewing, please do not hesitate to contact us.

⚠️ Please also have a look at our other listings ⚠️

Additional information:

We expressly recommend collection via direct transport (freight forwarder)
The goods are offered for sale under exclusion of any warranty
Technical data without guarantee
Subject to prior sale
❗Sale exclusively to business customers❗
